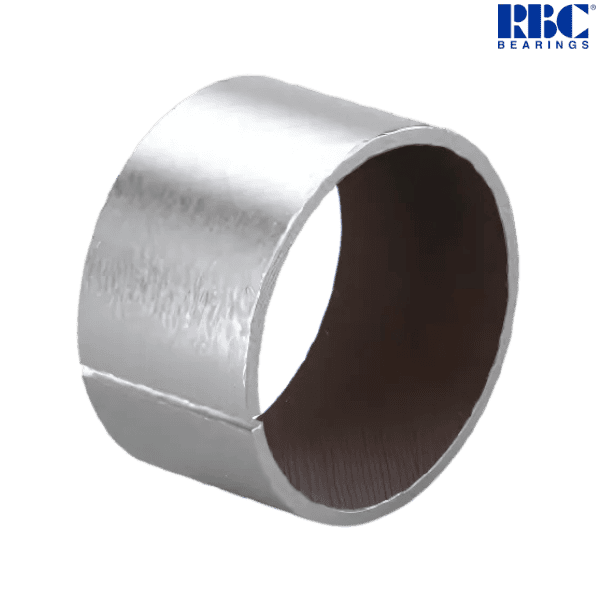

CJT1824 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CJT1824 RBC
Category - Thin-Walled Split Seam Steel Backed Bearings (Standard Inch Series)

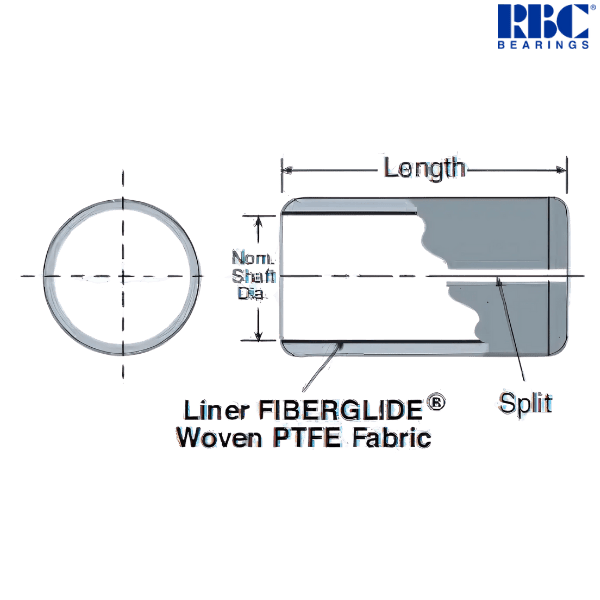

Principal Dimensions & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 1.123 inch
Maximum Recommended Shaft Diameter - 1.125 inch
Minimum Recommended Housing Bore * - 1.2495 inch
Maximum Recommended Housing Bore * - 1.2505 inch
Bearing Length - 1.500 (+0.000 to -0.020) inch
Wall Thickness - 0.062 inch
Maximum Static Load - 50625 lbf
Bearing Weight - 0.072 lbs

Principal Dimensions & Load Ratings (Metric) :
Bearing Weight - 0.0327 kg

Description of Prefix : CJT
• Inch Journal Bearings
• Thin Walled
• Split Seam Steel Backing
• Zinc Plated

Other salient points to be noted :
• Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
• They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material, with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.
• Constant wall thickness of 0.062 makes Series CJT dimensionally interchangeable with other types of steel bearings commonly used.
• Carbon steel is the standard backing, contact RBC Bearings® for additional metal options.
• Fabroid® liner can also be supplied for special applications.
• External surfaces plated to resist corrosion.

* Recommended housing bores are for steel housings.

♦ ♦ Images are for representation purposes only
