CJS5628 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CJS5628 RBC

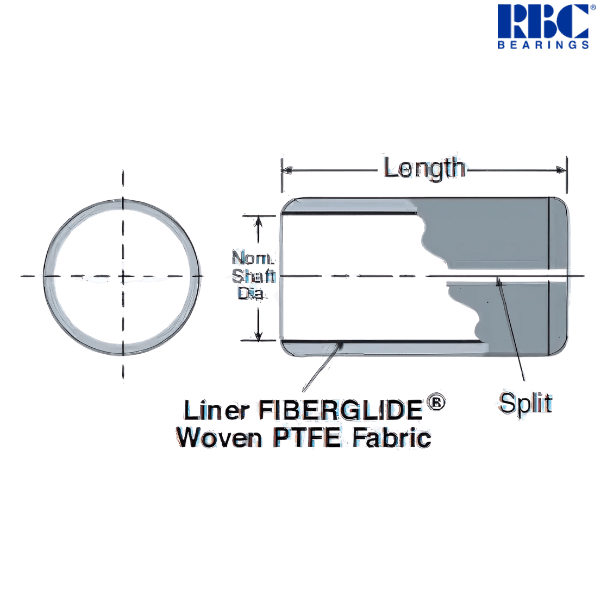

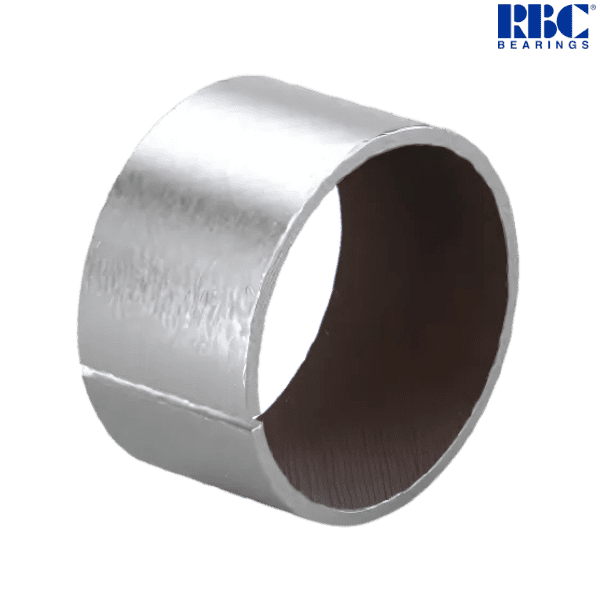

Category - Split Seam Steel Backed Bearings (Standard Inch Series)
Minimum Recommended Shaft Diameter (inch) - 3.4965
Maximum Recommended Shaft Diameter (inch) - 3.5
Minimum Recommended Housing Bore (inch) * - 3.6875
Maximum Recommended Housing Bore (inch) * - 3.6885
Bearing Length (inch) - 1.750 (+0.000 to -0.020)
Wall Thickness (inch) - 0.094
Maximum Static Load (lbf) - 232750
Bearing Weight (lbs) - 0.441
Bearing Weight (kg) - 0.2

Description of Prefix : CJS
---------------------------------------------------------------
• Inch/Metric Journal Bearings
• Split Seam Steel Backing
• Zinc Plated

Notes :
-------------------------------------------------------------------------
Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material,
with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.

* Recommended housing bores are for steel housings.

** Images are for representation purposes only
