CJS0610 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CJS0610 RBC
Category - Split Seam Steel Backed Bearings (Standard Inch Series)

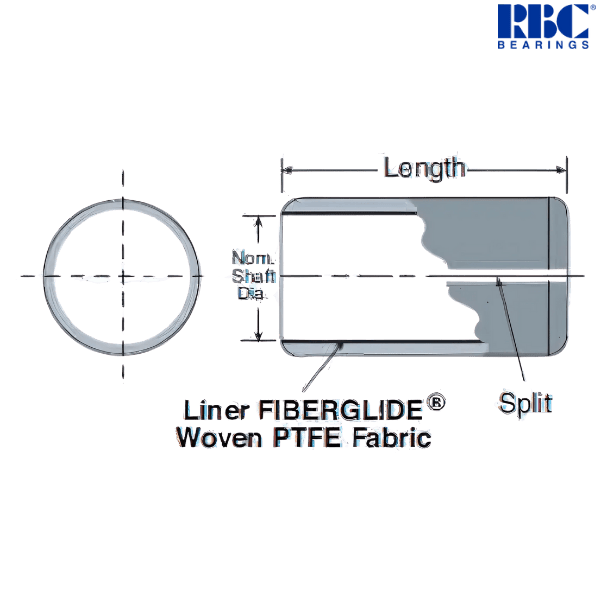

Principal Dimensions & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 0.3741 inch
Maximum Recommended Shaft Diameter - 0.375 inch
Minimum Recommended Housing Bore * - 0.468 inch
Maximum Recommended Housing Bore * - 0.469 inch
Bearing Length - 0.625 (+0.000 to -0.020) inch
Wall Thickness - 0.047 inch
Maximum Static Load - 8906 lbf
Bearing Weight - 0.009 lbs

Principal Dimensions & Load Ratings (Metric) :
Bearing Weight - 0.0041 kg

Description of Prefix : CJS
• Inch/Metric Journal Bearings
• Split Seam Steel Backing
• Zinc Plated

Other salient points to be noted :
• Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
• They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material, with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.

* Recommended housing bores are for steel housings.

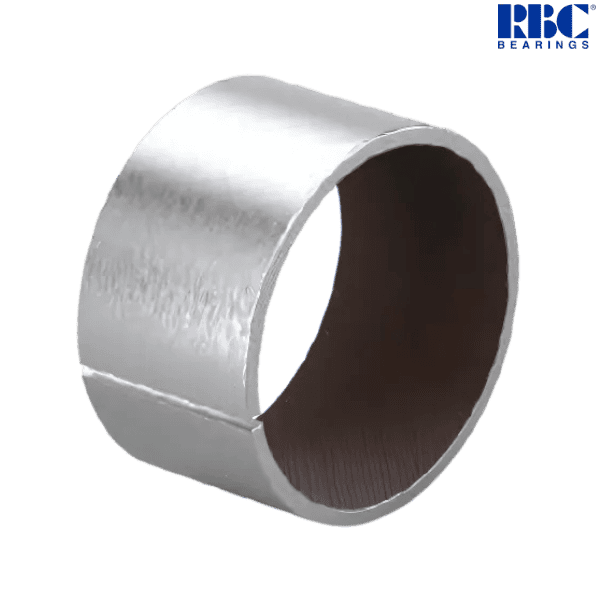

♦ ♦ Images are for representation purposes only
