Description
Brand - RBC

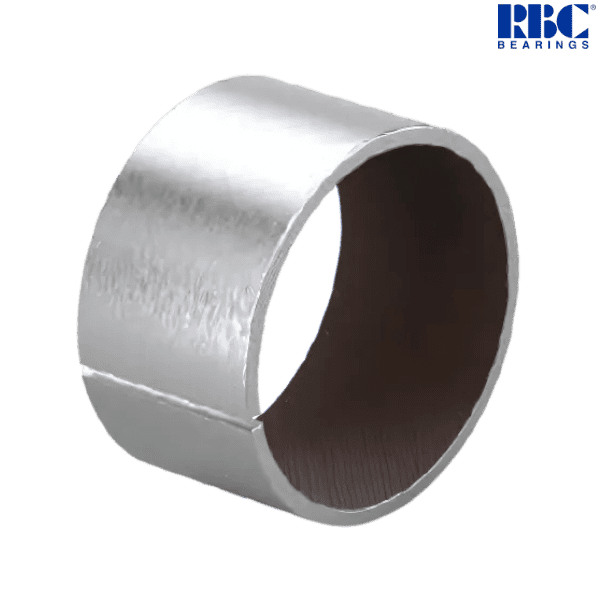

Item Number - CJM4050 RBC
Category - Split Seam Steel Backed Bearings (Standard Inch Series)

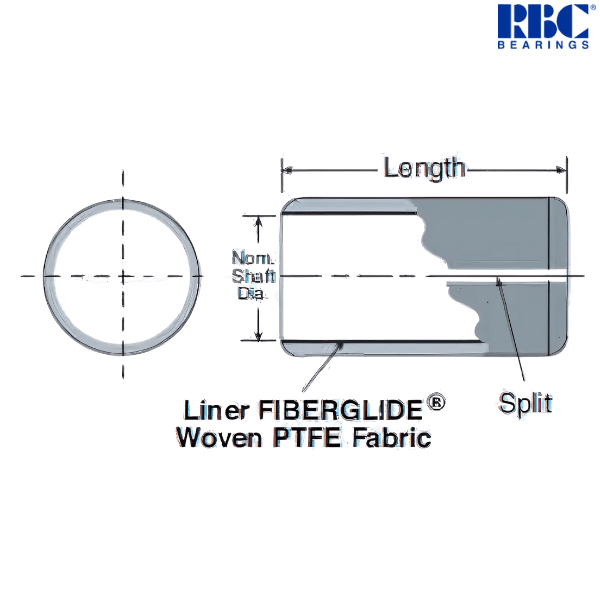

Principal Dimensions & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 39.95 inch
Maximum Recommended Shaft Diameter - 39.975 inch
Minimum Recommended Housing Bore * - 44 inch
Maximum Recommended Housing Bore * - 44.025 inch
Bearing Length - 50.00 (+0.000 to -0.020) inch
Wall Thickness - 2 inch
Maximum Static Load - 524000 lbf
Bearing Weight - 85.334 lbs
Principal Dimensions & Load Ratings (Metric) :
Bearing Weight - 38.7002 kg
Description of Prefix : CJM
• Inch/Metric Journal Bearings
• Split Seam Steel Backing
• Zinc Plated
Other salient points to be noted :
•Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
•They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material, with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.
• Carbon steel is the standard backing.
• Fabroid® liner can also be supplied for special applications
• External surfaces plated to resist corrosion * Recommended housing bores are for steel housings.
♦ ♦ Images are for representation purposes only
Item Number - CJM4050 RBC
Category - Split Seam Steel Backed Bearings (Standard Inch Series)
Principal Dimensions & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 39.95 inch
Maximum Recommended Shaft Diameter - 39.975 inch
Minimum Recommended Housing Bore * - 44 inch
Maximum Recommended Housing Bore * - 44.025 inch
Bearing Length - 50.00 (+0.000 to -0.020) inch
Wall Thickness - 2 inch
Maximum Static Load - 524000 lbf
Bearing Weight - 85.334 lbs
Principal Dimensions & Load Ratings (Metric) :
Bearing Weight - 38.7002 kg
Description of Prefix : CJM
• Inch/Metric Journal Bearings
• Split Seam Steel Backing
• Zinc Plated
Other salient points to be noted :
•Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
•They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material, with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.
• Carbon steel is the standard backing.
• Fabroid® liner can also be supplied for special applications
• External surfaces plated to resist corrosion * Recommended housing bores are for steel housings.
♦ ♦ Images are for representation purposes only
