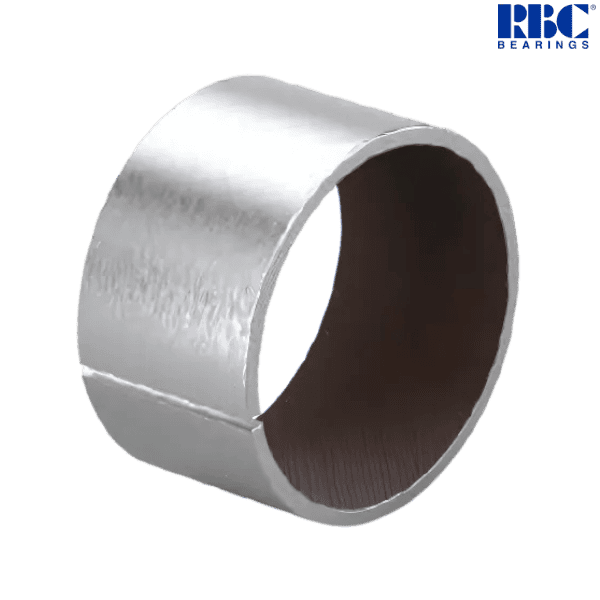

CJM3025 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CJM3025 RBC
Category - Split Seam Steel Backed Bearings (Standard Inch Series)

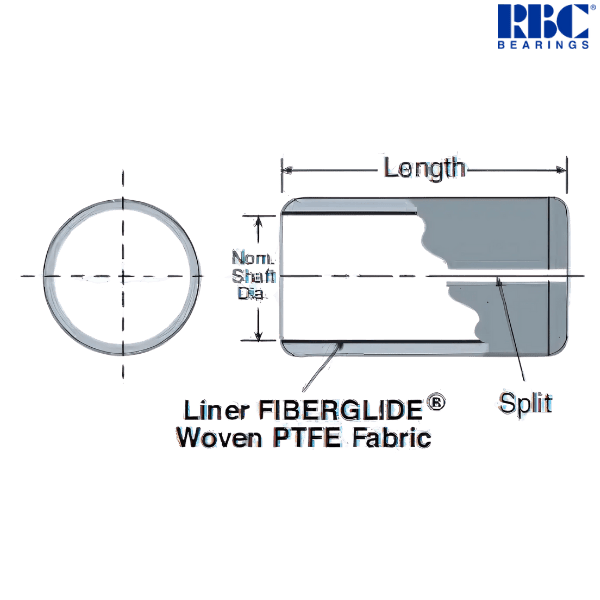

Principal Dimensions & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 29.959 inch
Maximum Recommended Shaft Diameter - 29.982 inch
Minimum Recommended Housing Bore * - 34 inch
Maximum Recommended Housing Bore * - 34.025 inch
Bearing Length - 25.00 (+0.000 to -0.020) inch
Wall Thickness - 2 inch
Maximum Static Load - 196500 lbf
Bearing Weight - 32.501 lbs

Principal Dimensions & Load Ratings (Metric) :
Bearing Weight - 14.7397 kg

Description of Prefix : CJM
• Inch/Metric Journal Bearings
• Split Seam Steel Backing
• Zinc Plated

Other salient points to be noted :
•Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
•They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material, with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.
• Carbon steel is the standard backing.
• Fabroid® liner can also be supplied for special applications
• External surfaces plated to resist corrosion * Recommended housing bores are for steel housings.

♦ ♦ Images are for representation purposes only
