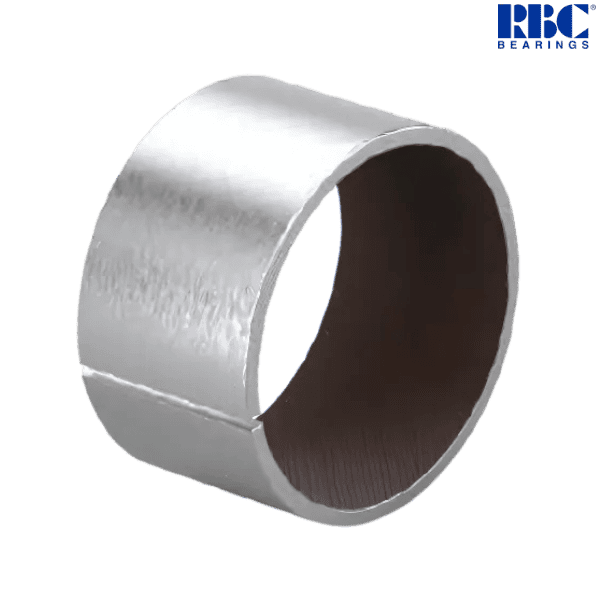

CJM1512 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CJM1512 RBC

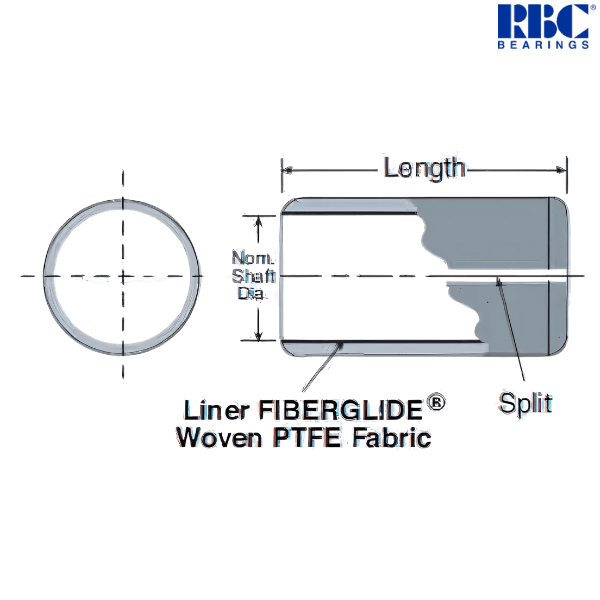

Category - Split Seam Steel Backed Bearings (Standard Inch Series)
Minimum Recommended Shaft Diameter (inch) - 14.966
Maximum Recommended Shaft Diameter (inch) - 14.984
Minimum Recommended Housing Bore (inch) * - 17
Maximum Recommended Housing Bore (inch) * - 17.018
Bearing Length (inch) - 12.00 (+0.000 to -0.020)
Wall Thickness (inch) - 1
Maximum Static Load (lbf) - 47160
Bearing Weight (lbs) - 3.852
Bearing Weight (kg) - 1.7469

Description of Prefix : CJM
---------------------------------------------------------------
• Inch/Metric Journal Bearings
• Split Seam Steel Backing
• Zinc Plated

Notes :
-------------------------------------------------------------------------
Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material,
with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.

- Carbon steel is the standard backing.
- Fabroid® liner can also be supplied for special applications
- External surfaces plated to resist corrosion

* Recommended housing bores are for steel housings.

** Images are for representation purposes only
