Description
Brand - RBC
Item Number - CJH4448 RBC
Category - Heavy-Walled Split Seam Steel Backed Bearings (Standard Inch Series)
Principal Dimensions & Load Ratings (Imperial) :
Minimum Recommended Shaft Diameter - 2.747 inch
Maximum Recommended Shaft Diameter - 2.75 inch
Minimum Recommended Housing Bore * - 2.9995 inch
Maximum Recommended Housing Bore * - 3.0005 inch

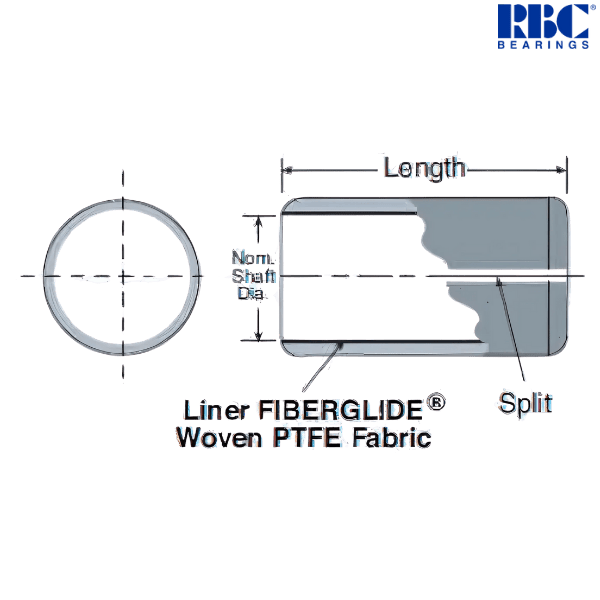

Bearing Length - 3.000 (+0.000 to -0.020) inch
Wall Thickness - 0.125 inch
Maximum Static Load - 313500 lbf
Bearing Weight - 0.803 lbs
Principal Dimensions & Load Ratings (Metric) :
Bearing Weight - 0.3642 kg
Description of Prefix : CJH
• Inch Journal Bearings
• Heavy Walled
• Split Seam Steel Backing
• Zinc Plated
Other salient points to be noted :
• Fiberglide® split seam steel journal bearings are built to comply with or surpass industry standards for self-lubricating bushings.
•They deliver the full benefits of Fiberglide® while remaining cost-effective. Typically, carbon steel is used as the backing material, with a protective plated coating to prevent corrosion. Alternative metal options are available upon request.
• Constant wall thickness of 1/8 in. (0.125") makes Series CJH dimensionally interchangeable with many bronze and filament wound bushings.
• Carbon steel is the standard backing, contact RBC Bearings® for additional metal options.
• Fabroid® liner can also be supplied for special applications.
• External surfaces plated to resist corrosion.
* Recommended housing bores are for steel housings.

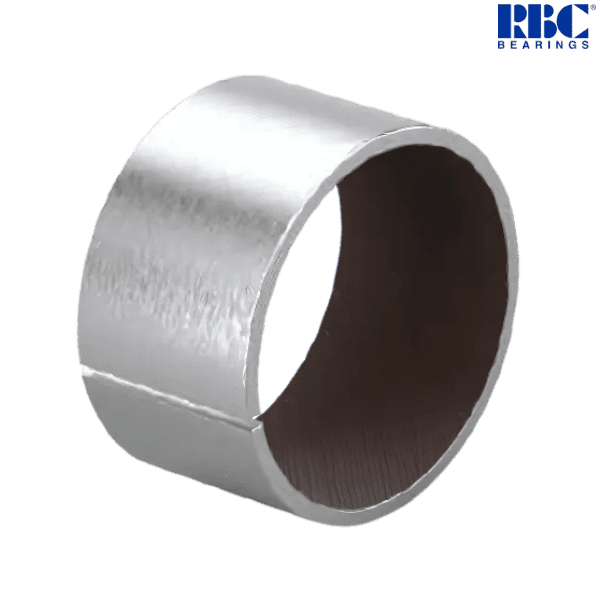

♦ ♦ Images are for representation purposes only
