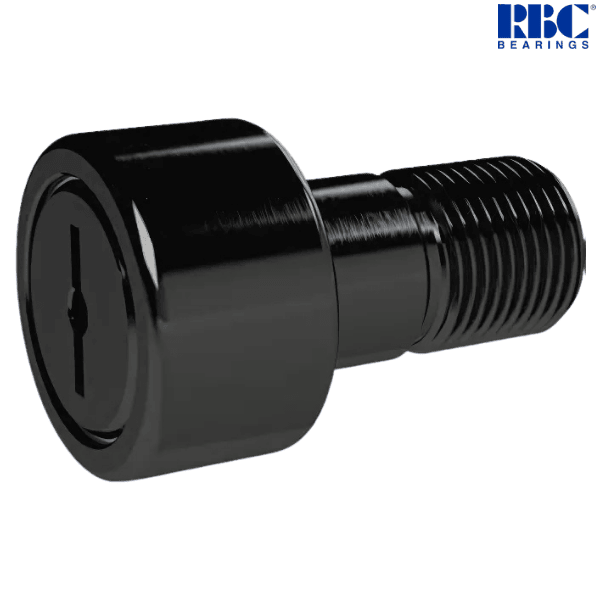

CH 56 L RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CH 56 L RBC
Also Known As - CH56L
Basic Number - (-56)
Cam Followers (Hexlube® Socket Head and Sealed) - CH 56 LW
Category - Heavy Stud Crowned Cam Followers (Slotted Head and Sealed)

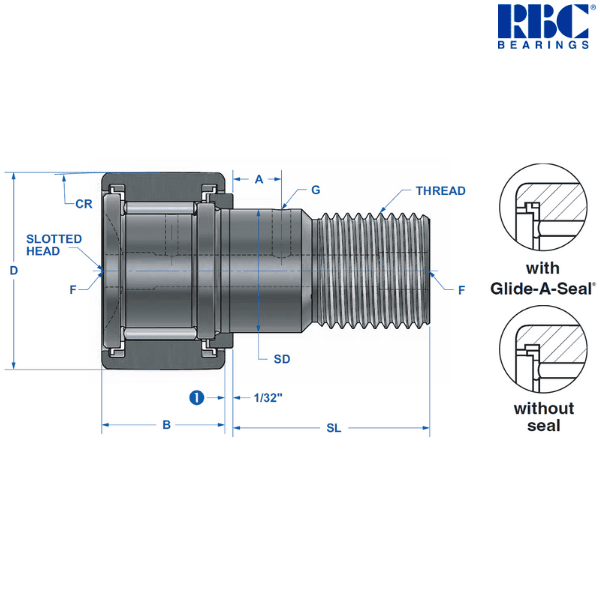

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 1.75 inch
Outside Diameter (D) - 1.75 (+ .000 to - .001) inch
Roller Width (B) - 1.000 (+ .000 to - .005) inch
Crown Radius (CR) - 20 inch
Shank Diameter (SD) - 1 (+ .001 to - .000) inch
Shank Length (SL) - 1.75 inch
Eff. Thread Length (TL) - 0.875 inch
Thread Class 2A - 1-14
Approximate Weight - 0.98 lbs
Lube Fitting (F) - 3/16 inch **
Loc. (A) - 0.437 inch
Diameter (G) - 0.125 inch
Socket Head Wrench Size - 0.3125 inch
Speed Limit - 2600 rpm
Dynamic Capacity (C) - 6400 lbf
Static Capacity (C0) - 15850 lbf ***
Maximum Allowable Load - 11400 lbf
Track Capacity @ 40 Rc - 4550 lbf
Maximum Clamping Torque - 1350 in-lbf ****
Hsg. Bore - 1 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 1.25 inch

Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 0.4444 kg

Description of Suffixes and Prefixes :
C - Crowned Outer Ring
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed

Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer

Other salient points to be noted :
• (1) 1/16" for size CH 160 LW and larger. (Refer to the Image)
• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)

** Sizes CH 16 LW through CH 22 LW cannot be relubricated
*** Bearing Static Capacity provided for comparison only
**** Torque may be doubled for completely dry threads

♦ ♦ Images are for representation purposes only
