Description
Brand - RBC
Item Number - CH 40 L RBC
Also Known As - CH40L
Category - Heavy Stud Crowned Cam Followers (Slotted Head and Sealed)
Nominal Size (inch) - 1.25
Outside Diameter (D) inch - 1.25 (+ .000 to - .001)
Roller Width (B) inch - 0.750 (+ .000 to - .005)
Crown Radius (CR) inch - 14
Shank Diameter (SD) inch - 0.75 (+ .001 to - .000)
Shank Length (SL) inch - 1.25
Eff. Thread Length (TL) inch - 0.625
Thread Class 2A - 3/4-16
Approximate Weight (lbs) - 0.38
Approximate Weight (kg) - 0.1723
Lube Fitting (F) inch ** - 3/16
Loc. (A) inch - 0.312
Diameter (G) inch - 0.093
Socket Head Wrench Size (inch) - 0.25
Speed Limit (rpm) - 3900
Dynamic Capacity (C) lbf - 4000
Static Capacity (C0) lbf *** - 8500
Maximum Allowable Load (lbf) - 5800
Track Capacity @ 40 Rc (lbf) - 2440
Maximum Clamping Torque (in-lbf) **** - 750
Hsg. Bore (inch) - 0.75 (+ .0005 to - .0000)
Minimum Boss Diameter (inch) - 1
Basic Number - (-40)
Cam Followers (Hexlube® Socket Head and Sealed) - CH 40 LW
Description of Suffixes and Prefixes :
-------------------------------------------------------------
C - Crowned Outer Ring
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed
NNW - 2 Jam Nuts & Washer
Notes :
------------------------------------------

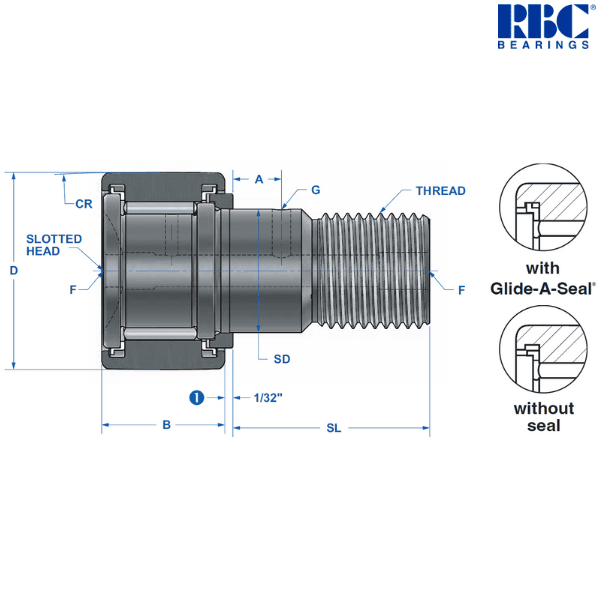

- (1) 1/16" for size CH 160 LW and larger. (Refer to the Image)
- (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)
* Sizes CH 16 L through CH 22 L have a 1/8 inch hole at the flange end only.
** Sizes CH 16 LW through CH 22 LW cannot be relubricated.
*** Bearing Static Capacity provided for comparison only.
**** Torque may be doubled for completely dry threads.

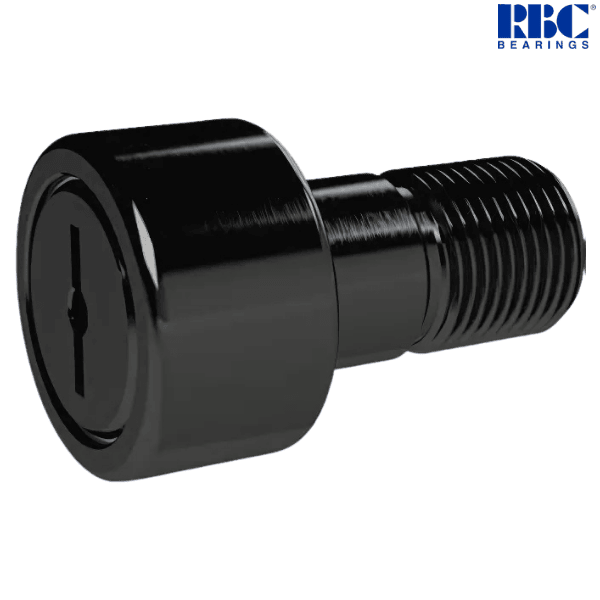

***** Images are for representation purposes only
