Description
Brand - RBC
Item Number - CH 224 LW RBC
Also Known As - CH224LW
Basic Number - (-224)
Category - Heavy Stud Crowned Cam Followers (Hexlube® Socket Head and Sealed)

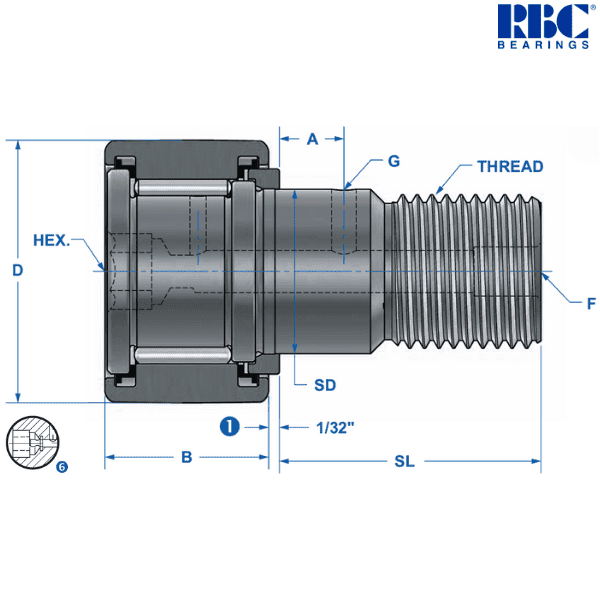

Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 7 inch
Outside Diameter (D) - 7 (+ .000 to - .001) inch
Roller Width (B) - 3.750 (+ .000 to - .005) inch
Crown Radius (CR) - 60 inch
Shank Diameter (SD) - 3.5 (+ .001 to - .000) inch
Shank Length (SL) - 7.688 inch
Eff. Thread Length (TL) - 4.125 inch
Thread Class 2A - 3 1/2- 4
Approximate Weight - 59.2 lbs
Lube Fitting (F) - 1/4 NPT inch **
Loc. (A) - 1.25 inch
Diameter (G) - 0.187 inch
Socket Head Wrench Size - 1.25 inch
Speed Limit - 700 rpm
Dynamic Capacity (C) - 79400 lbf
Static Capacity (C0) - 237800 lbf ***
Maximum Allowable Load - 217000 lbf
Track Capacity @ 40 Rc - 71000 lbf
Maximum Clamping Torque - 3000 in-lbf ****
Hsg. Bore - 3.5 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 4.5 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 26.8481 kg
Description of Suffixes and Prefixes :
C - Crowned Outer Ring
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer
Other salient points to be noted :
• (1) 1/16" for size CH 160 LW and larger. (Refer to the Image)

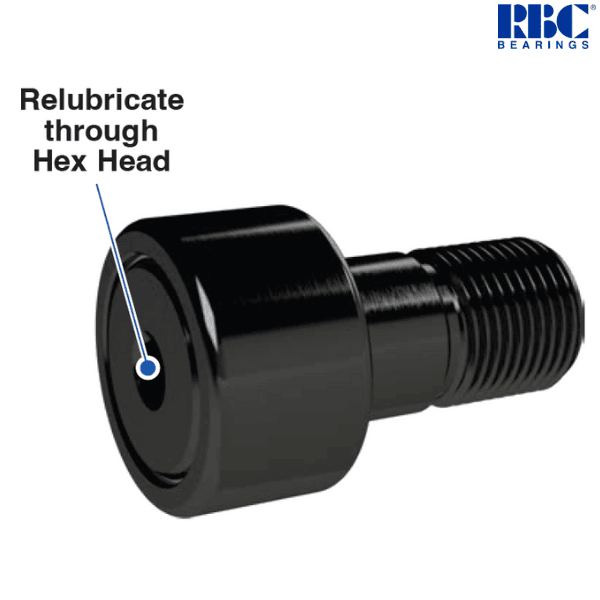

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)
** Sizes CH 16 LW through CH 22 LW cannot be relubricated
*** Bearing Static Capacity provided for comparison only
**** Torque may be doubled for completely dry threads
♦ ♦ Images are for representation purposes only
