Brand - RBC
Item Number - CH 160 LW RBC
Also Known As - CH160LW
Basic Number - (-160)
Category - Heavy Stud Crowned Cam Followers (Hexlube® Socket Head and Sealed)
Principal Dimensions & Load Ratings (Imperial) :
Nominal Size - 5 inch
Outside Diameter (D) - 5 (+ .000 to - .001) inch
Roller Width (B) - 2.750 (+ .000 to - .005) inch
Crown Radius (CR) - 48 inch
Shank Diameter (SD) - 2.5 (+ .001 to - .000) inch
Shank Length (SL) - 5.062 inch
Eff. Thread Length (TL) - 2.562 inch
Thread Class 2A - 2 1/2-12
Approximate Weight - 21.4 lbs
Lube Fitting (F) - 1/4 NPT inch **
Loc. (A) - 0.875 inch
Diameter (G) - 0.187 inch
Socket Head Wrench Size - 0.875 inch
Speed Limit - 1000 rpm
Dynamic Capacity (C) - 44900 lbf
Static Capacity (C0) - 136000 lbf ***
Maximum Allowable Load - 99000 lbf
Track Capacity @ 40 Rc - 35000 lbf
Maximum Clamping Torque - 3000 in-lbf ****
Hsg. Bore - 2.5 (+ .0005 to - .0000) inch
Minimum Boss Diameter - 3.25 inch
Principal Dimensions & Load Ratings (Metric) :
Approximate Weight - 9.7052 kg
Replaces (Direct Interchange)
McGill - CCFH-5-SB
Replaces :
RBC - CH160L
McGill - CCFH-5-S
Description of Suffixes and Prefixes :
C - Crowned Outer Ring
H - Heavy Stud (Screwdriver Slot Head)
L - Sealed
W - Hex Head with Hex Lube Feature
Description of Possible Suffixes :
NNW - 2 Jam Nuts & Washer
Other salient points to be noted :
• (1) 1/16" for size CH 160 LW and larger. (Refer to the Image)

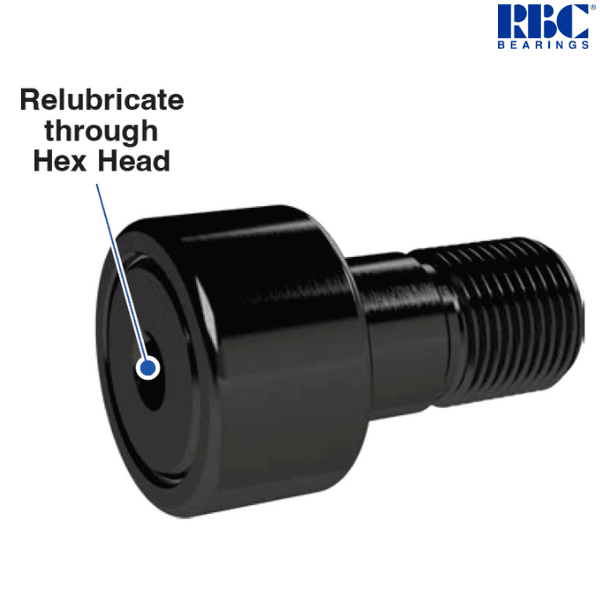

• (6) HexLube® Cam Followers can be regreased through the hex head using a Lincoln #5803 or Alemite #B6783 needle nozzle adapter. (Refer to the Image)
** Sizes CH 16 LW through CH 22 LW cannot be relubricated
*** Bearing Static Capacity provided for comparison only
**** Torque may be doubled for completely dry threads
♦ ♦ Images are for representation purposes only
