CFS 6 FW IKO

Brand - IKO
Category - Thrust Disk Type Miniature Cam Followers, Stainless Steel Made
Item Number - CFS 6 FW IKO
Also Known As - CFS6FW
Type - With Cage/Stud Head Hex Hole
Stud Diameter (mm) - 6
Weight (kg) - 0.013

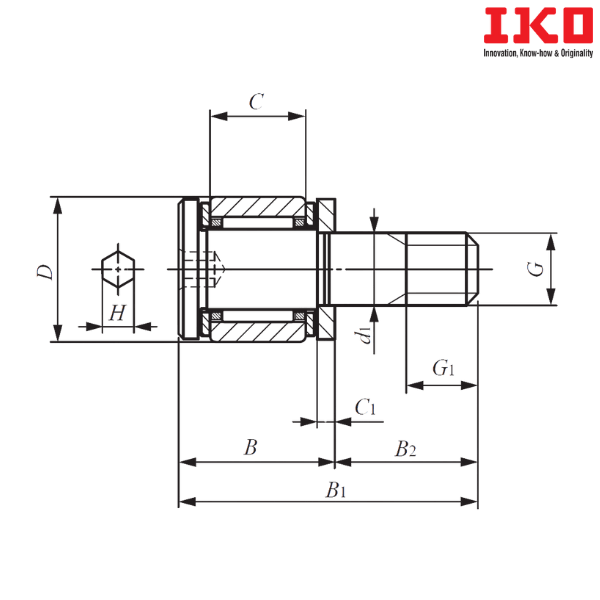

Outside Diameter of Outer Diameter (D) mm - 12
Width of Outer Ring (C) mm - 7
Boundary Dimension (d1) mm - 6
G - M6 × 1
Boundary Dimension (G1) mm - 6
Boundary Dimension (B) mm - 10.5
Boundary Dimension (B1) mm - 22.5
Boundary Dimension (B2) mm - 12
Boundary Dimension (C1) mm - 1.2
Boundary Dimension (H) mm - 2.5
Minimum Mounting Dimension (f min) mm - 11.6
Maximum Tightening Torque (N-cm) - 268
Basic Dynamic Load Rating (C) N - 1670
Basic Static Load Rating (C0) N - 1760
Maximum Allowable Static Load (N) - 1760

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS....W - Thrust Disk Type Miniature Cam Followers
F - Stainless Steel Made

** Images are for representation purposes only
