CFS 5 FW IKO

Brand - IKO
Category - Thrust Disk Type Miniature Cam Followers, Stainless Steel Made
Item Number - CFS 5 FW IKO
Also Known As - CFS5FW
Type - With Cage/Stud Head Hex Hole
Stud Diameter (mm) - 5
Weight (kg) - 0.007

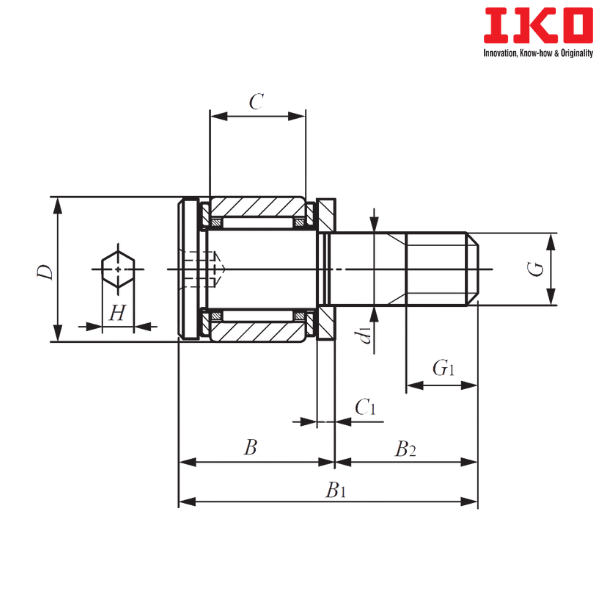

Outside Diameter of Outer Diameter (D) mm - 10
Width of Outer Ring (C) mm - 6
Boundary Dimension (d1) mm - 5
G - M5 × 0.8
Boundary Dimension (G1) mm - 5
Boundary Dimension (B) mm - 9
Boundary Dimension (B1) mm - 19
Boundary Dimension (B2) mm - 10
Boundary Dimension (C1) mm - 1
Boundary Dimension (H) mm - 2
Minimum Mounting Dimension (f min) mm - 9.6
Maximum Tightening Torque (N-cm) - 158
Basic Dynamic Load Rating (C) N - 1250
Basic Static Load Rating (C0) N - 1480
Maximum Allowable Static Load (N) - 1370

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS....W - Thrust Disk Type Miniature Cam Followers
F - Stainless Steel Made

** Images are for representation purposes only
