CFS 5 FV IKO

Brand - IKO
Category - Miniature Type Cam Followers
Item Number - CFS 5 FV IKO
Also Known As - CFS5FV
Type - Full Complement
Stud Diameter (c) mm - 5
Weight (kg) - 0.007

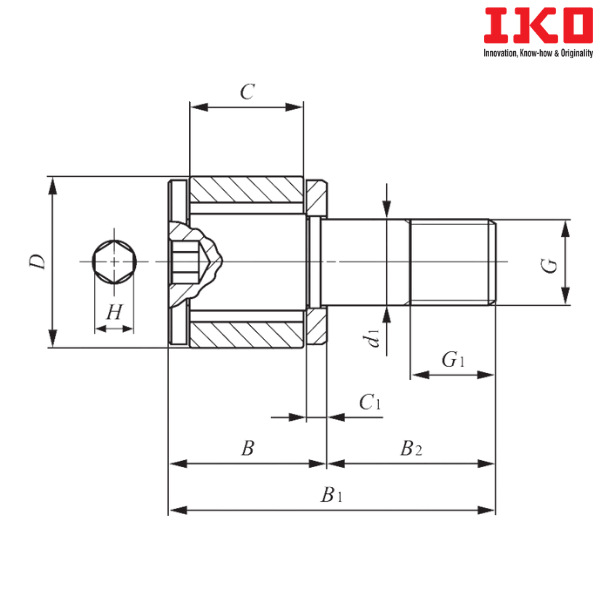

Outside Diameter of Outer Diameter (D) mm - 10
Width of Outer Ring (C) mm - 6
Boundary Dimension (d1) mm - 5
G - M5 × 0.8
Boundary Dimension (G1) mm - 5
Maximum Boundary Dimension (B) mm - 8
Boundary Dimension (B1) mm - 18
Boundary Dimension (B2) mm - 10
Boundary Dimension (C1) mm - 1
Boundary Dimension (H) mm - 2
Minimum Mounting Dimension (f min) mm - 9.6
Maximum Tightening Torque (N-cm) - 158
Basic Dynamic Load Rating (C) N - 3180
Basic Static Load Rating (C0) N - 4700
Maximum Allowable Static Load (N) - 1570

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS - Miniature Type Cam Followers
V - Full Complement Type

** Images are for representation purposes only
