CFS 4 V IKO

Brand - IKO
Category - Miniature Type Cam Followers
Item Number - CFS 4 V IKO
Also Known As - CFS4V
Type - Full Complement
Stud Diameter (c) mm - 4
Weight (kg) - 0.004

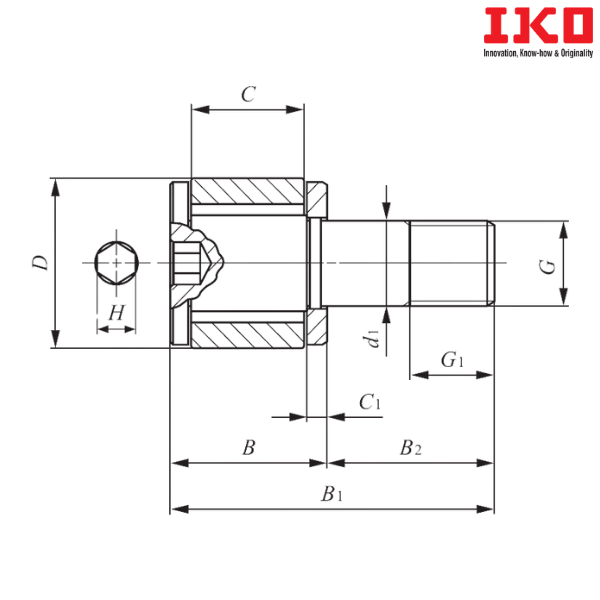

Outside Diameter of Outer Diameter (D) mm - 8
Width of Outer Ring (C) mm - 5
Boundary Dimension (d1) mm - 4
G - M4 × 0.7
Boundary Dimension (G1) mm - 4
Maximum Boundary Dimension (B) mm - 7
Boundary Dimension (B1) mm - 15
Boundary Dimension (B2) mm - 8
Boundary Dimension (C1) mm - 1
Boundary Dimension (H) mm - 1.5
Minimum Mounting Dimension (f min) mm - 7.7
Maximum Tightening Torque (N-cm) - 77.7
Basic Dynamic Load Rating (C) N - 2370
Basic Static Load Rating (C0) N - 3000
Maximum Allowable Static Load (N) - 919

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS - Miniature Type Cam Followers
V - Full Complement Type

** Images are for representation purposes only
