CFS 3 FW IKO

Brand - IKO
Category - Thrust Disk Type Miniature Cam Followers, Stainless Steel Made
Item Number - CFS 3 FW IKO
Also Known As - CFS3FW
Type - With Cage/Stud Head Hex Hole
Stud Diameter (mm) - 3
Weight (kg) - 0.002

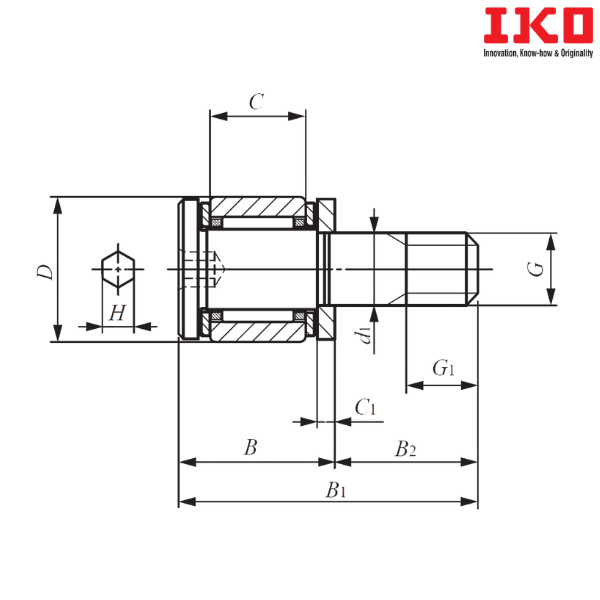

Outside Diameter of Outer Diameter (D) mm - 6
Width of Outer Ring (C) mm - 4
Boundary Dimension (d1) mm - 3
G - M3 × 0.5
Boundary Dimension (G1) mm - 3
Boundary Dimension (B) mm - 6.5
Boundary Dimension (B1) mm - 12.5
Boundary Dimension (B2) mm - 6
Boundary Dimension (C1) mm - 0.7
Boundary Dimension (H) mm - 1.3
Minimum Mounting Dimension (f min) mm - 5.8
Maximum Tightening Torque (N-cm) - 33.5
Basic Dynamic Load Rating (C) N - 504
Basic Static Load Rating (C0) N - 488
Maximum Allowable Static Load (N) - 399

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS....W - Thrust Disk Type Miniature Cam Followers
F - Stainless Steel Made

** Images are for representation purposes only
