CFS 2 W IKO

Brand - IKO
Category - Thrust Disk Type Miniature Cam Followers
Item Number - CFS 2 W IKO
Also Known As - CFS2W
Type - With Cage/Stud Head Hex Hole
Stud Diameter (mm) - 2
Weight (kg) - 0.0006
Outside Diameter of Outer Diameter (D) mm - 4.5
Width of Outer Ring (C) mm - 2.5

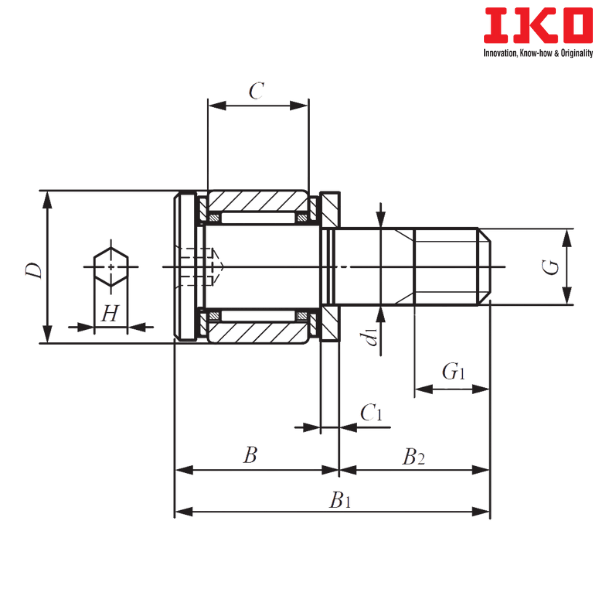

Boundary Dimension (d1) mm - 2
G - M2 × 0.4
Boundary Dimension (G1) mm - 2
Boundary Dimension (B) mm - 4.5
Boundary Dimension (B1) mm - 8.5
Boundary Dimension (B2) mm - 4
Boundary Dimension (C1) mm - 0.7
Boundary Dimension (H) mm - 0.9
Minimum Mounting Dimension (f min) mm - 4.3
Maximum Tightening Torque (N-cm) - 9.1
Basic Dynamic Load Rating (C) N - 288
Basic Static Load Rating (C0) N - 202
Maximum Allowable Static Load (N) - 194

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS....W - Thrust Disk Type Miniature Cam Followers

** Images are for representation purposes only
