CFS 2 FV IKO

Brand - IKO
Category - Miniature Type Cam Followers
Item Number - CFS 2 FV IKO
Also Known As - CFS2FV
Type - Full Complement
Stud Diameter (c) mm - 2
Weight (kg) - 0.0006

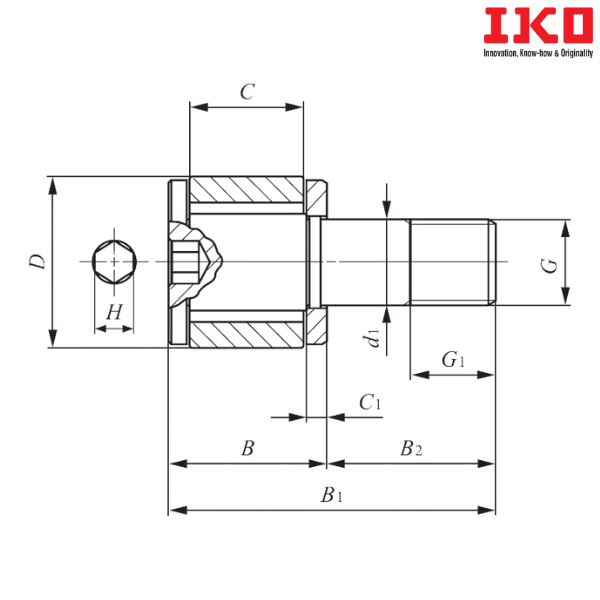

Outside Diameter of Outer Diameter (D) mm - 4.5
Width of Outer Ring (C) mm - 2.5
Boundary Dimension (d1) mm - 2
G - M2 × 0.4
Boundary Dimension (G1) mm - 2
Maximum Boundary Dimension (B) mm - 4
Boundary Dimension (B1) mm - 8
Boundary Dimension (B2) mm - 4
Boundary Dimension (C1) mm - 0.7
Boundary Dimension (H) mm - 0.9

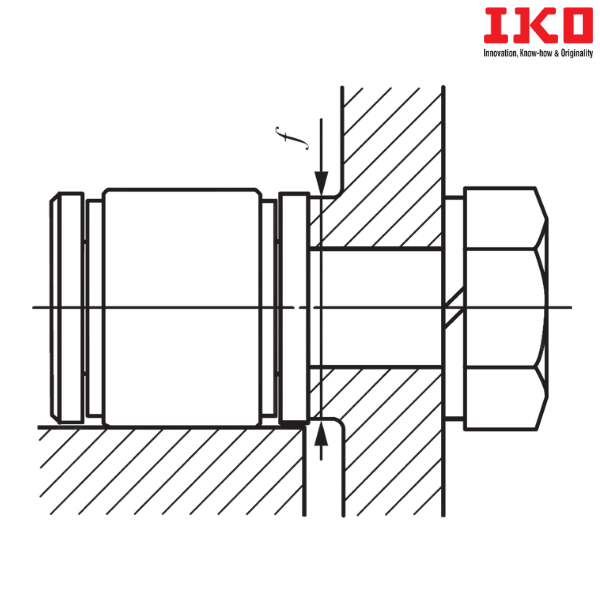

Minimum Mounting Dimension (f min) mm - 4.3
Maximum Tightening Torque (N-cm) - 9.1
Basic Dynamic Load Rating (C) N - 768
Basic Static Load Rating (C0) N - 734
Maximum Allowable Static Load (N) - 229

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS - Miniature Type Cam Followers
V - Full Complement Type

** Images are for representation purposes only
