CFS 2.5 V IKO

Brand - IKO
Category - Miniature Type Cam Followers
Item Number - CFS 2.5 V IKO
Also Known As - CFS2.5V
Type - Full Complement
Stud Diameter (c) mm - 2.5
Weight (kg) - 0.001
Outside Diameter of Outer Diameter (D) mm - 5
Width of Outer Ring (C) mm - 3
Boundary Dimension (d1) mm - 2.5
G - M2.5 × 0.45
Boundary Dimension (G1) mm - 2.5
Maximum Boundary Dimension (B) mm - 4.5
Boundary Dimension (B1) mm - 9.5
Boundary Dimension (B2) mm - 5
Boundary Dimension (C1) mm - 0.7
Boundary Dimension (H) mm - 0.9
Minimum Mounting Dimension (f min) mm - 4.8
Maximum Tightening Torque (N-cm) - 18.7
Basic Dynamic Load Rating (C) N - 1000
Basic Static Load Rating (C0) N - 1080
Maximum Allowable Static Load (N) - 360

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS - Miniature Type Cam Followers
V - Full Complement Type

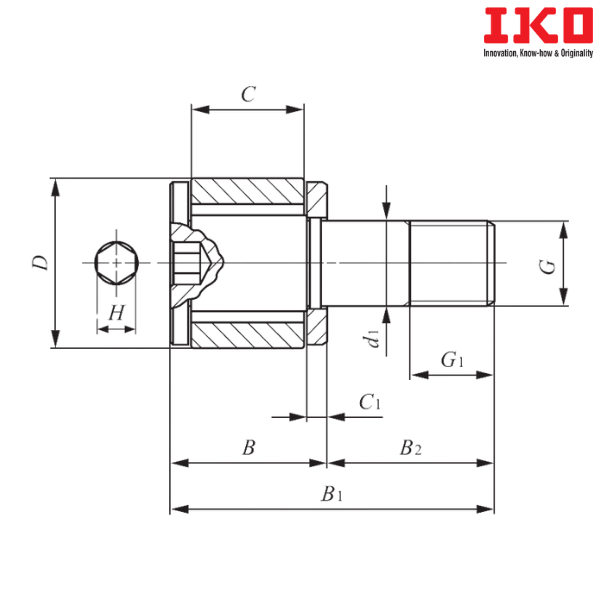

** Images are for representation purposes only
