CFS 1.4 WV IKO

Brand - IKO
Category - Thrust Disk Type Miniature Cam Followers
Item Number - CFS 1.4 WV IKO
Also Known As - CFS1.4WV
Type - Full complement
Stud Diameter (mm) - 1.4
Weight (kg) - 0.00035

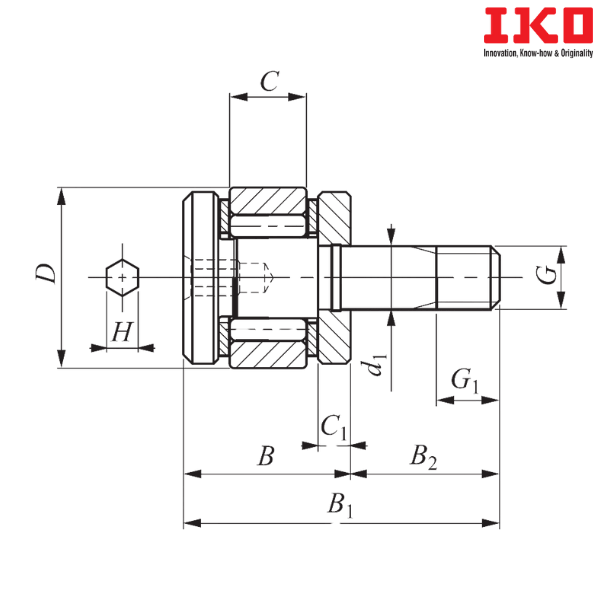

Outside Diameter of Outer Diameter (D) mm - 4
Width of Outer Ring (C) mm - 1.7
Boundary Dimension (d1) mm - 1.4
G - M1.4 × 0.3
Boundary Dimension (G1) mm - 1.4
Boundary Dimension (B) mm - 3.7
Boundary Dimension (B1) mm - 7
Boundary Dimension (B2) mm - 3.3
Boundary Dimension (C1) mm - 0.7
Boundary Dimension (H) mm - 0.9
Minimum Mounting Dimension (f min) mm - 3.8
Maximum Tightening Torque (N-cm) - 3
Basic Dynamic Load Rating (C) N - 481
Basic Static Load Rating (C0) N - 385
Maximum Allowable Static Load (N) - 105

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFS....W - Thrust Disk Type Miniature Cam Followers
V - Full Complement Type

** Images are for representation purposes only
