Description
Brand - RBC

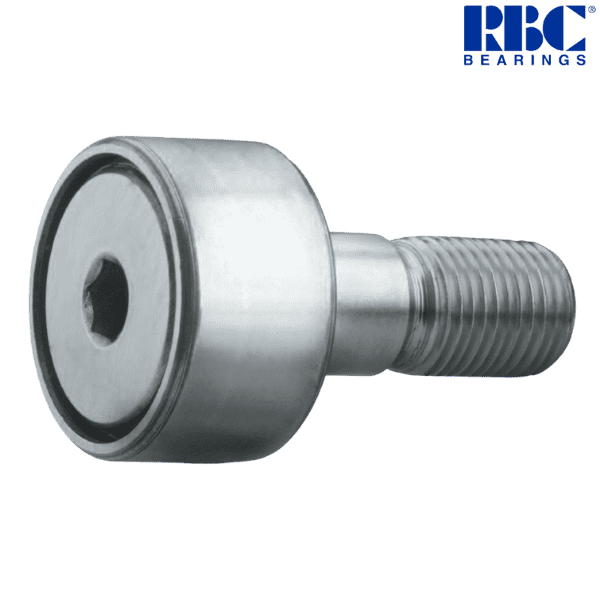

Item Number - CFM35 RBC
Category - Metric Series Cam Followers
Outer Diameter of Roller (D) mm - 35
Width of Roller (B) mm - 18
Stud Diameter (SD) mm - 16 (+0 / -0.18)
Shank Length (SL) mm - 32.5
Eff Thread Length (TL) mm - 17
Thread - M16 X 1.5
Approxmate Weight (kg) - 166
A (mm) - 8
G (mm) - 3
Socket Head Wrench Size (w) mm - 8
Speed Limit (rpm) - 5000
Dynamic Capacities (N) - 13300
Static Capacities (N) - 19500
Maximum Allow Load (N) - 12500
Track Capacity 40 RC (N) - 12500
Maximum Clamping Torque (Nm) - 50
Housing Bore Tolerance H7 - 0/+0.018
Minimum Housing Outer Diameter (mm) - 27
Equivalent Part Number in INA - KR35PP
Equivalent Part Number in McGill - MCFR35SB
Notes :
--------------------------------------------------------------------------
Each part is supplied with 2 nuts and grease fittings.
Cage and roller internal configuration with seals :
---------------------------------------------------------------------
- Provides better roller guidance across the full bearing load.
- Minimizes roller misalignment and heat build-up.
- Enables cooler operation.
- Supports higher speed performance.
- Extends lubricant service life.
TJ TandemRoller® pocket - Two rollers per pocket
-------------------------------------------------------------------------------
- An RBC innovation from 1965.
- Delivers 10% to 40% more load capacity.
- Offers 37% to 200% longer fatigue life compared to similar single-roller designs.
Grease fittings
--------------------------------------------------------------------------------
- Allows for multiple lubrication methods.
- Lubrication from the head end of the stud.
- Lubrication from the threaded end.
- Lubrication through the outside diameter of the shank/stud.
Thick walled outer ring
-------------------------------------------------------------------------------
- Built to withstand heavy static and impact forces.
- Outer ring design helps reduce edge stress due to its crown shape.
** Images are for representation purposes only
