Description
Brand - RBC
Item Number - CFM30 RBC
Category - Metric Series Cam Followers

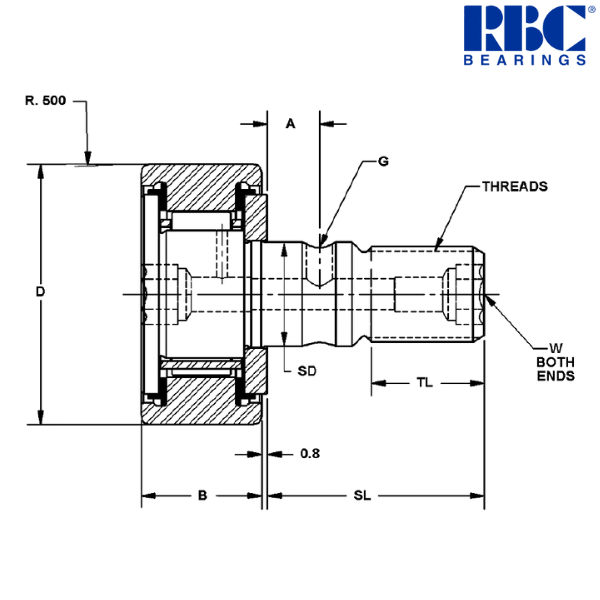

Principal Dimensions & Load Ratings (Metric) :
Outer Diameter of Roller (D) - 30 mm
Width of Roller (B) - 14 mm
Stud Diameter (SD) - 12 (+0 / -0.18) mm
Shank Length (SL) - 25 mm
Eff Thread Length (TL) - 13 mm
Thread - M12 X 1.5
Approxmate Weight - 86 kg
Dimension (A) - 6 mm
Dimension (G) - 3 mm
Socket Head Wrench Size (w) - 6 mm
Speed Limit - 6800 rpm
Dynamic Capacities - 8000 N
Static Capacities - 9300 N
Maximum Allow Load - 11500 N
Track Capacity 40 RC - 7800 N
Maximum Clamping Torque - 22 Nm
Housing Bore Tolerance H7 - 0/+0.018
Minimum Housing Outer Diameter - 23 mm
Equivalent Part Number in INA - KR30PP
Equivalent Part Number in McGill - MCFR30SB
Other salient points to be noted :
Each part is supplied with 2 nuts and grease fittings
Cage and roller internal configuration with seals :
• Provides better roller guidance across the full bearing load.
• Minimizes roller misalignment and heat build-up.
• Enables cooler operation.
• Supports higher speed performance.
• Extends lubricant service life.
TJ TandemRoller® pocket - Two rollers per pocket
• An RBC innovation from 1965.
• Delivers 10% to 40% more load capacity.
• Offers 37% to 200% longer fatigue life compared to similar single-roller designs.
Grease fittings
• Allows for multiple lubrication methods.
• Lubrication from the head end of the stud.
• Lubrication from the threaded end.
• Lubrication through the outside diameter of the shank/stud.
Thick walled outer ring
• Built to withstand heavy static and impact forces.
• Outer ring design helps reduce edge stress due to its crown shape.

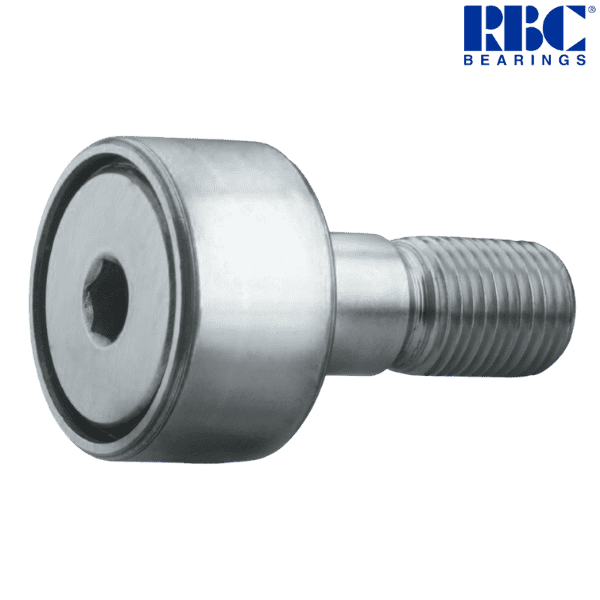

♦ ♦ Images are for representation purposes only
