CFM22 RBC

RBC

Download Data Sheet

Country Of Origin: USA

Variant

Share this product

Brand - RBC
Item Number - CFM22 RBC
Category - Metric Series Cam Followers

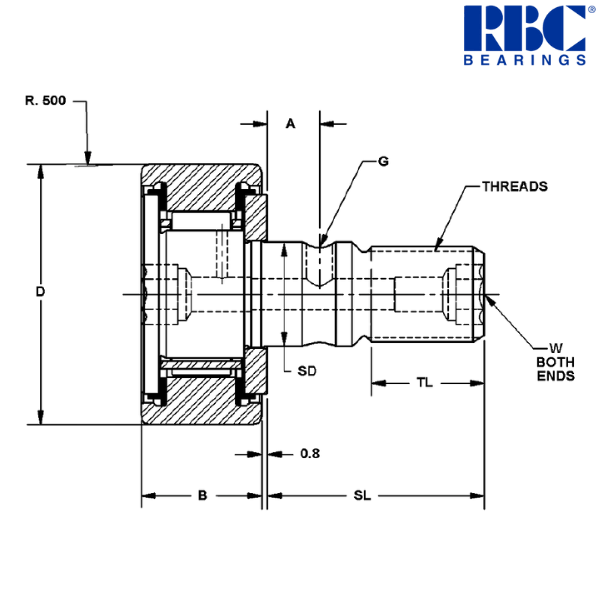

Outer Diameter of Roller (D) mm - 22
Width of Roller (B) mm - 12
Stud Diameter (SD) mm - 10 (+0 / -0.15)
Shank Length (SL) mm - 23
Eff Thread Length (TL) mm - 12
Thread - M10 X 1
Approxmate Weight (kg) - 42
Socket Head Wrench Size (w) mm - 5
Speed Limit (rpm) - 8500
Dynamic Capacities (N) - 6200
Static Capacities (N) - 7100
Maximum Allow Load (N) - 5200
Track Capacity 40 RC (N) - 5200
Maximum Clamping Torque (Nm) - 15
Housing Bore Tolerance H7 - 0/+0.015
Minimum Housing Outer Diameter (mm) - 17
Equivalent Part Number in INA - KR22PP
Equivalent Part Number in McGill - MCFR22SB

Notes :
--------------------------------------------------------------------------
Each part is supplied with 2 nuts and grease fittings.

Cage and roller internal configuration with seals :
---------------------------------------------------------------------
- Provides better roller guidance across the full bearing load.
- Minimizes roller misalignment and heat build-up.
- Enables cooler operation.
- Supports higher speed performance.
- Extends lubricant service life.

TJ TandemRoller® pocket - Two rollers per pocket
-------------------------------------------------------------------------------
- An RBC innovation from 1965.
- Delivers 10% to 40% more load capacity.
- Offers 37% to 200% longer fatigue life compared to similar single-roller designs.

Grease fittings
--------------------------------------------------------------------------------
- Allows for multiple lubrication methods.
- Lubrication from the head end of the stud.
- Lubrication from the threaded end.
- Lubrication through the outside diameter of the shank/stud.

Thick walled outer ring
-------------------------------------------------------------------------------
- Built to withstand heavy static and impact forces.
- Outer ring design helps reduce edge stress due to its crown shape.

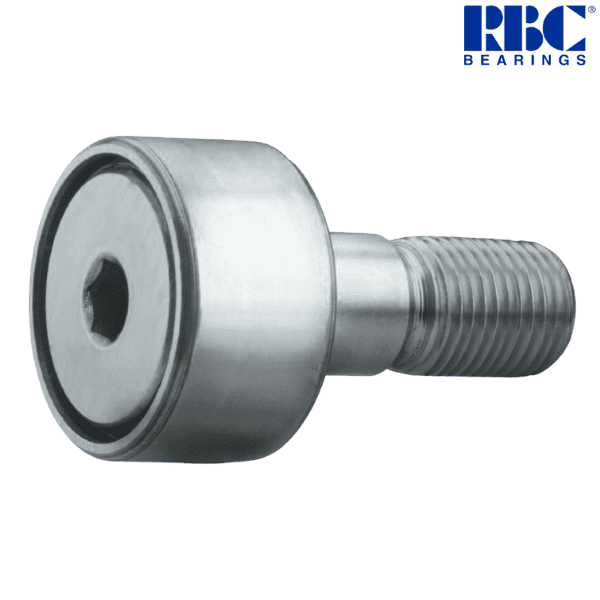

** Images are for representation purposes only
