CFKRE 90 VUU IKO

Brand - IKO
Category - Eccentric Type Cam Followers Full complement/Double Hex Hole
Item Number - CFKRE 90 VUU
Also Known As - CFKRE90VUU
Type - Shield Type (with Cylindrical Outer Ring)

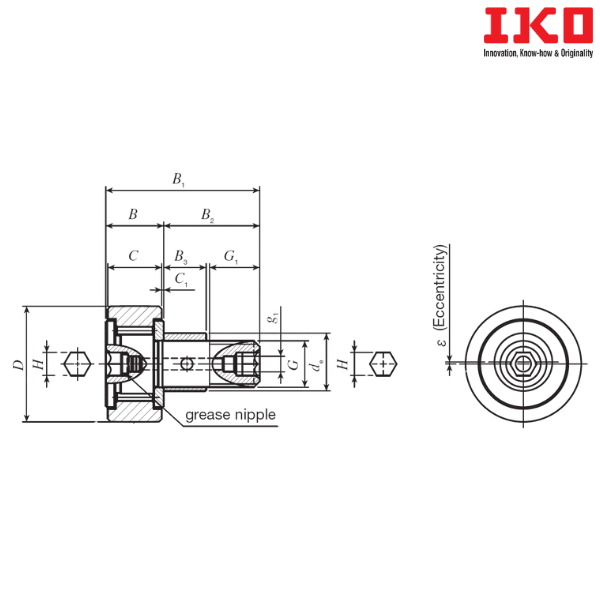

Outside Diameter of Eccentric Collar (mm) - 35
Weight (kg) - 0.035
Outside Diameter of Outer Diameter (D) mm - 2270
Width of Outer Ring (C) mm - 90
Boundary Dimension (de) mm - 35
G - M12×1.5
Boundary Dimension (G1) mm - 32
Maximum Boundary Dimension (B) mm - 37
Maximum Boundary Dimension (B1) mm - 100
Boundary Dimension (B2) mm - 63
Boundary Dimension (B3) mm - 29
Boundary Dimension (C1) mm - 1
Boundary Dimension (g1) mm - 6
Boundary Dimension (H) mm - 14
Minimum Allowable Value of Chamfer Dimension (rs min) - 1
Eccentricity (ε) mm - 1.5
Minimum Mounting Dimension (f min) mm - 49
Maximum Tightening Torque (N-m) - 438
Basic Dynamic Load Rating (C) N - 67700
Basic Static Load Rating (C0) N - 144000
Maximum Allowable Static Load (N) - 85900

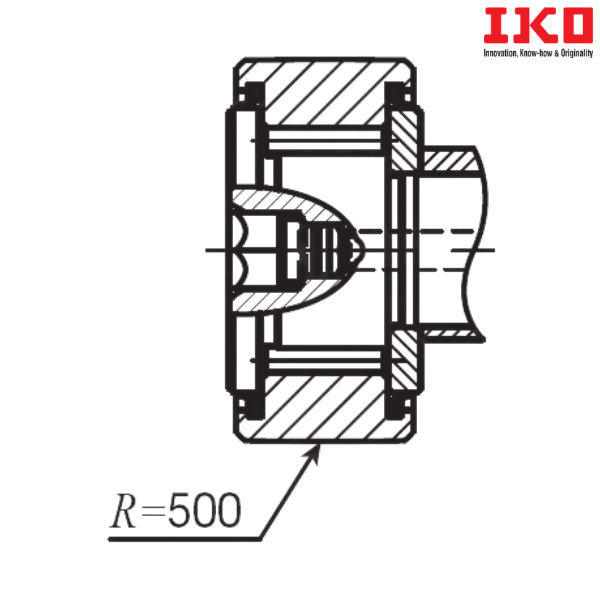

Shield Type (with Crowned Outer Ring) - CFKRE 90 VR
Shield Type (with Cylindrical Outer Ring) - CFKRE 90 V
Sealed Type (with Cylindrical Outer Ring) - CFKRE 90 VUUR

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )
UU - Sealed Type
V - Full Complement Type

** Images are for representation purposes only
