CFKRE 80 R IKO

Brand - IKO
Category - Eccentric Type Cam Followers (With Cage/Double Hex Hole)
Item Number - CFKRE 80 R
Also Known As - CFKRE80R
Type - Shield Type (with Crowned Outer Ring)
Outside Diameter of Eccentric Collar (mm) - 35
Weight (kg) - 1.92
Outside Diameter of Outer Diameter (D) mm - 80
Width of Outer Ring (C) mm - 35
Boundary Dimension (de) mm - 35
G - M30×1.5
Boundary Dimension (G1) mm - 32
Maximum Boundary Dimension (B) mm - 37
Maximum Boundary Dimension (B1) mm - 100
Boundary Dimension (B2) mm - 63
Boundary Dimension (B3) mm - 29
Boundary Dimension (C1) mm - 1
Boundary Dimension (g1) mm - 6
Boundary Dimension (H) mm - 14
Minimum Allowable Value of Chamfer Dimension (rs min) - 1
Eccentricity (ε) mm - 1.5
Minimum Mounting Dimension (f min) mm - 49
Maximum Tightening Torque (N-m) - 438
Basic Dynamic Load Rating (C) N - 45400
Basic Static Load Rating (C0) N - 85100
Maximum Allowable Static Load (N) - 85100
Shield Type (with Cylindrical Outer Ring) - CFKRE 80
Sealed Type (with Cylindrical Outer Ring) - CFKRE 80 UUR
Shield Type (with Cylindrical Outer Ring) - CFKRE 80 UU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )
R - With Crowned Outer Ring

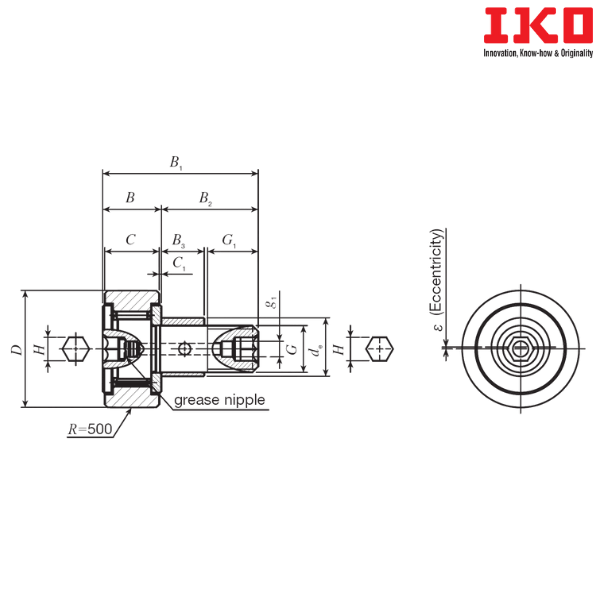

** Images are for representation purposes only
