CFKRE 62 IKO

Brand - IKO
Category - Eccentric Type Cam Followers (With Cage/Double Hex Hole)
Item Number - CFKRE 62
Also Known As - CFKRE62
Type - Shield Type (with Cylindrical Outer Ring)

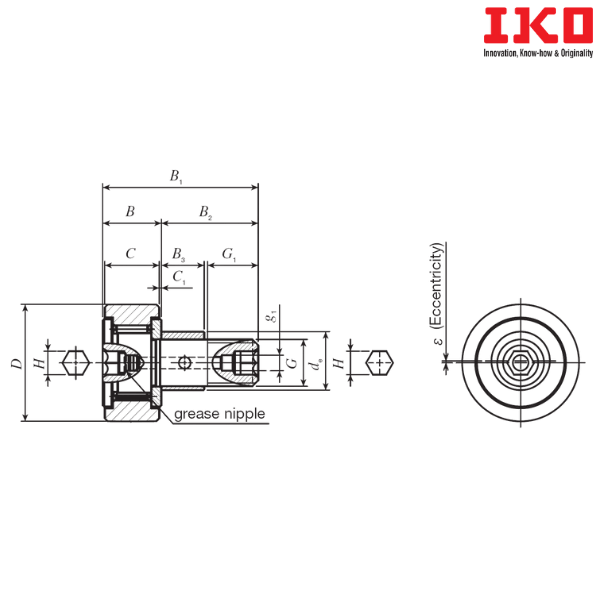

Outside Diameter of Eccentric Collar (mm) - 28
Weight (kg) - 0.823
Outside Diameter of Outer Diameter (D) mm - 62
Width of Outer Ring (C) mm - 29
Boundary Dimension (de) mm - 28
G - M24×1.5
Boundary Dimension (G1) mm - 25
Maximum Boundary Dimension (B) mm - 30.6
Maximum Boundary Dimension (B1) mm - 80.1
Boundary Dimension (B2) mm - 49.5
Boundary Dimension (B3) mm - 22
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 6
Boundary Dimension (H) mm - 14

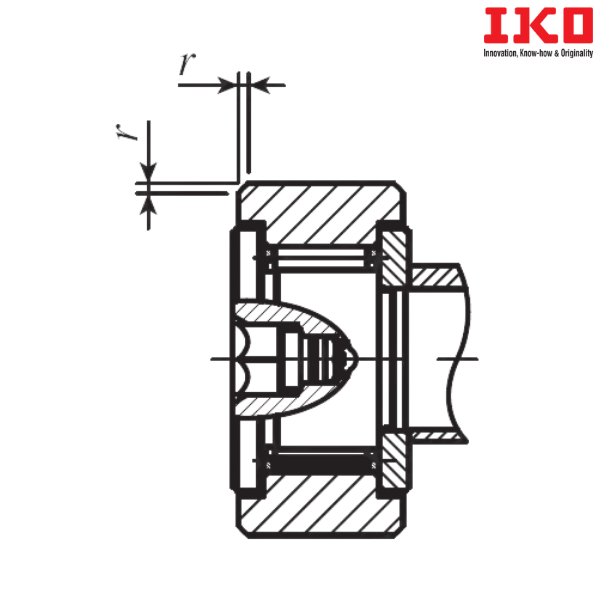

Minimum Allowable Value of Chamfer Dimension (rs min) - 1
Eccentricity (ε) mm - 1
Minimum Mounting Dimension (f min) mm - 40
Maximum Tightening Torque (N-m) - 215
Basic Dynamic Load Rating (C) N - 30500
Basic Static Load Rating (C0) N - 52600
Maximum Allowable Static Load (N) - 52000
Shield Type (with Crowned Outer Ring) - CFKRE 62 R
Sealed Type (with Cylindrical Outer Ring) - CFKRE 62 UUR
Shield Type (with Cylindrical Outer Ring) - CFKRE 62 UU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )

** Images are for representation purposes only
