CFKRE 52 UUR IKO

Brand - IKO

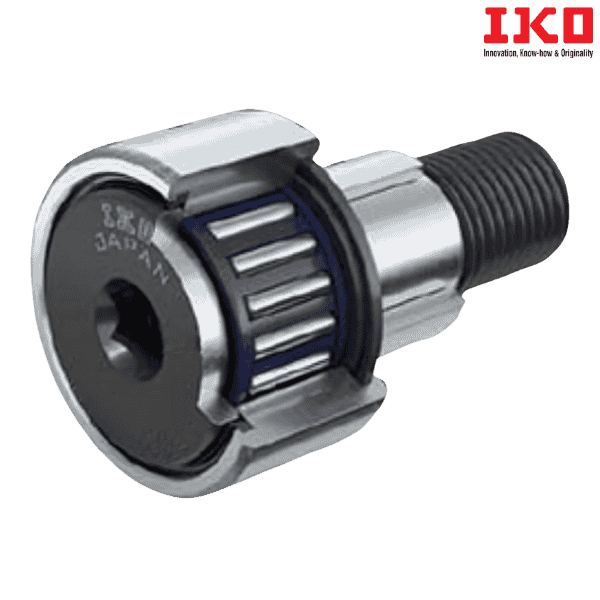

Category - Eccentric Type Cam Followers (With Cage/Double Hex Hole)
Item Number - CFKRE 52 UUR
Also Known As - CFKRE52UUR
Type - Sealed Type (with Cylindrical Outer Ring)
Outside Diameter of Eccentric Collar (mm) - 24
Weight (kg) - 0.472

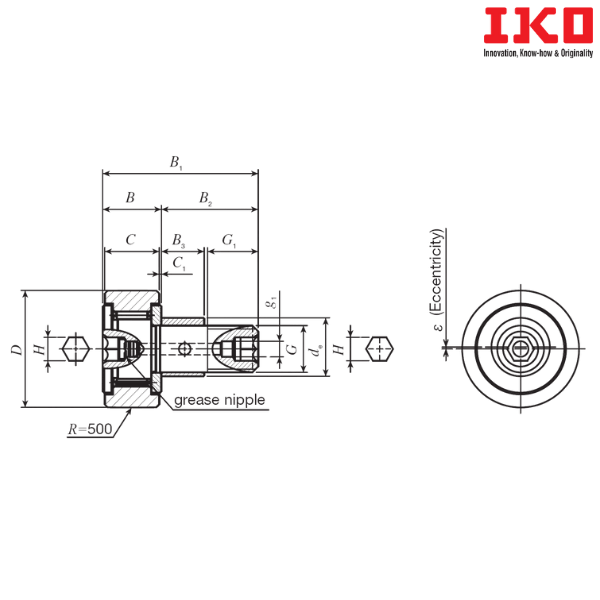

Outside Diameter of Outer Diameter (D) mm - 52
Width of Outer Ring (C) mm - 24
Boundary Dimension (de) mm - 24
G - M20×1.5
Boundary Dimension (G1) mm - 21
Maximum Boundary Dimension (B) mm - 25.6
Maximum Boundary Dimension (B1) mm - 66.1
Boundary Dimension (B2) mm - 40.5
Boundary Dimension (B3) mm - 18
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 6
Boundary Dimension (H) mm - 10
Minimum Allowable Value of Chamfer Dimension (rs min) - 1
Eccentricity (ε) mm - 1

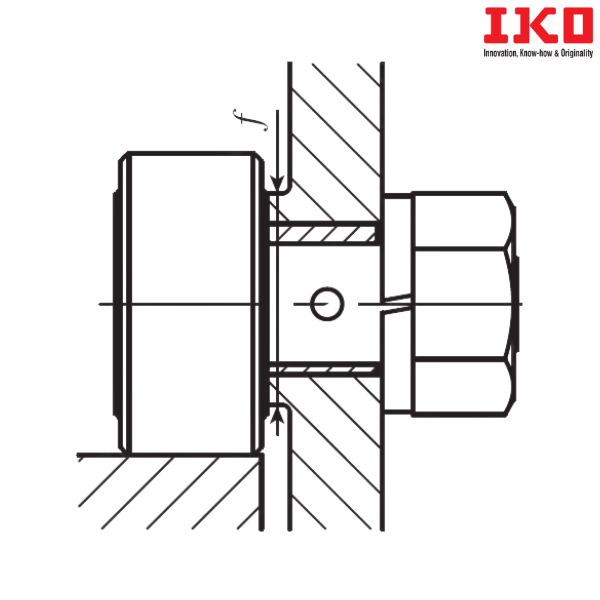

Minimum Mounting Dimension (f min) mm - 34
Maximum Tightening Torque (N-m) - 119
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 34600
Maximum Allowable Static Load (N) - 34600
Shield Type (with Crowned Outer Ring) - CFKRE 52 R
Shield Type (with Cylindrical Outer Ring) - CFKRE 52
Shield Type (with Cylindrical Outer Ring) - CFKRE 52 UU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )

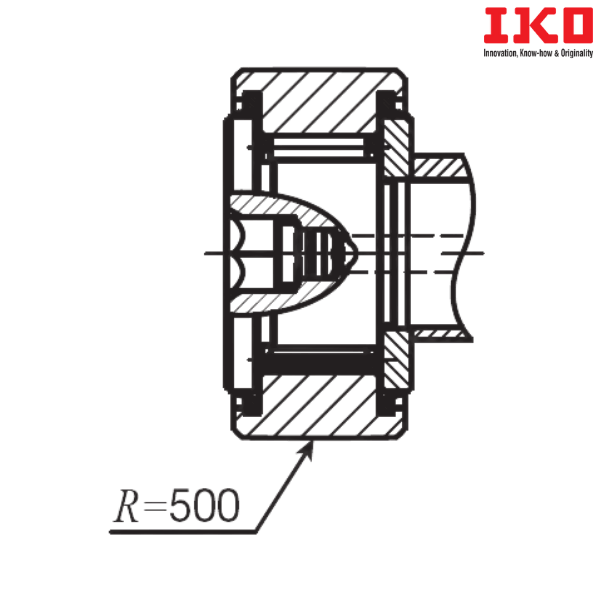

R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
