CFKRE 35 VUU IKO

Brand - IKO
Category - Eccentric Type Cam Followers Full complement/Double Hex Hole
Item Number - CFKRE 35 VUU
Also Known As - CFKRE35VUU
Type - Shield Type (with Cylindrical Outer Ring)
Outside Diameter of Eccentric Collar (mm) - 18
Weight (kg) - 0.02
Outside Diameter of Outer Diameter (D) mm - 180
Width of Outer Ring (C) mm - 35
Boundary Dimension (de) mm - 18
G - M12×1.5
Boundary Dimension (G1) mm - 17
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (B3) mm - 14
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 4
Boundary Dimension (H) mm - 8
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6
Eccentricity (ε) mm - 1
Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 37600
Maximum Allowable Static Load (N) - 23200

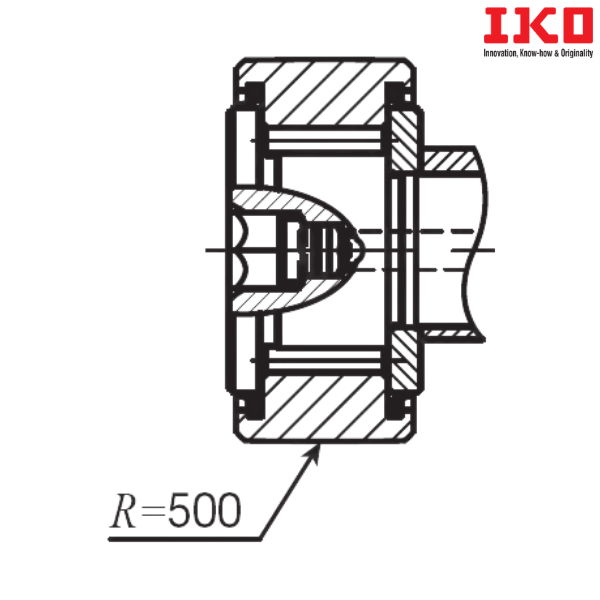

Shield Type (with Crowned Outer Ring) - CFKRE 35 VR
Shield Type (with Cylindrical Outer Ring) - CFKRE 35 V
Sealed Type (with Cylindrical Outer Ring) - CFKRE 35 VUUR

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )
UU - Sealed Type
V - Full Complement Type

** Images are for representation purposes only
