CFKRE 32 VUUR IKO

Brand - IKO
Category - Eccentric Type Cam Followers Full complement/Double Hex Hole
Item Number - CFKRE 32 VUUR
Also Known As - CFKRE32VUUR
Type - Sealed Type (with Cylindrical Outer Ring)

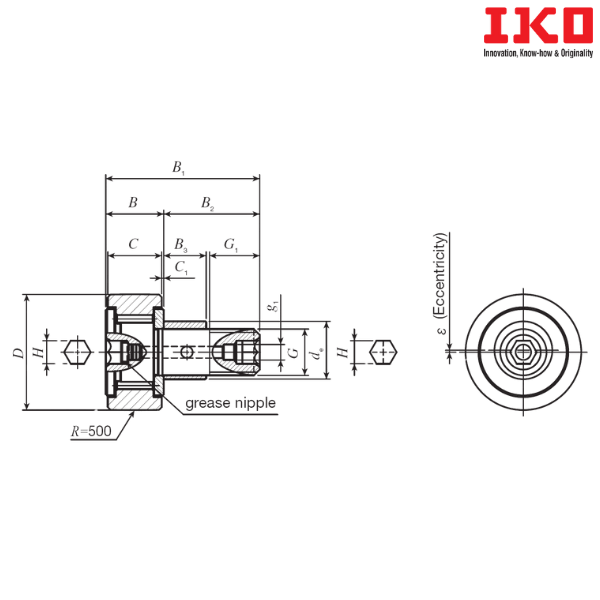

Outside Diameter of Eccentric Collar (mm) - 14
Weight (kg) - 0.015
Outside Diameter of Outer Diameter (D) mm - 111
Width of Outer Ring (C) mm - 32
Boundary Dimension (de) mm - 14
G - M12×1.5
Boundary Dimension (G1) mm - 13
Maximum Boundary Dimension (B) mm - 15.2
Maximum Boundary Dimension (B1) mm - 40.2
Boundary Dimension (B2) mm - 25
Boundary Dimension (B3) mm - 11
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (g1) mm - 4
Boundary Dimension (H) mm - 6

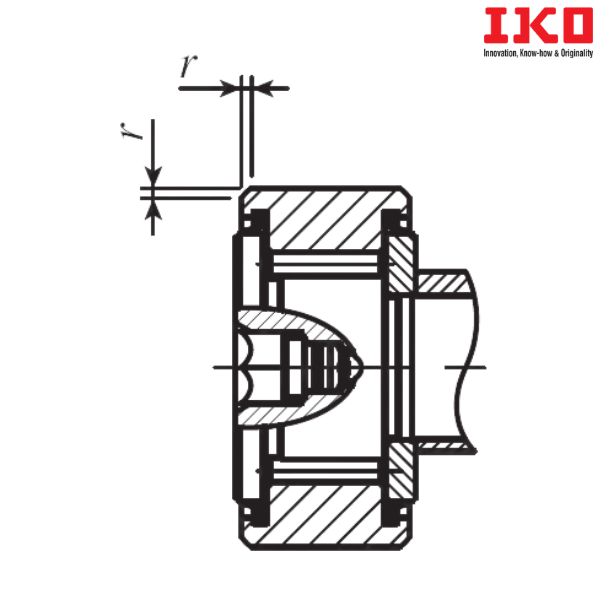

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6
Eccentricity (ε) mm - 0.5
Minimum Mounting Dimension (f min) mm - 21
Maximum Tightening Torque (N-m) - 21.9
Basic Dynamic Load Rating (C) N - 13500
Basic Static Load Rating (C0) N - 19700
Maximum Allowable Static Load (N) - 13200
Shield Type (with Crowned Outer Ring) - CFKRE 32 VR
Shield Type (with Cylindrical Outer Ring) - CFKRE 32 V
Shield Type (with Cylindrical Outer Ring) - CFKRE 32 VUU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )
R - With Crowned Outer Ring
UU - Sealed Type
V - Full Complement Type

** Images are for representation purposes only
