CFKRE 22 R IKO

Brand - IKO
Category - Eccentric Type Cam Followers (With Cage/Double Hex Hole)
Item Number - CFKRE 22 R
Also Known As - CFKRE22R
Type - Shield Type (with Crowned Outer Ring)

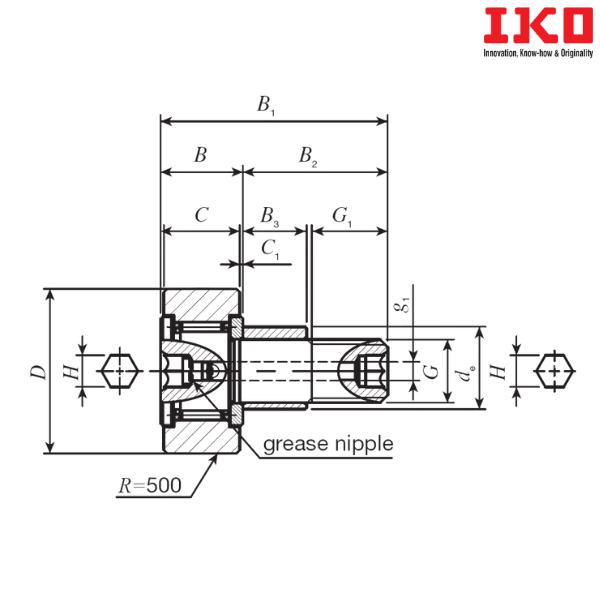

Outside Diameter of Eccentric Collar (mm) - 13
Weight (kg) - 0.047
Outside Diameter of Outer Diameter (D) mm - 22
Width of Outer Ring (C) mm - 12
Boundary Dimension (de) mm - 13
G - M10×1.0
Boundary Dimension (G1) mm - 12
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 36.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (B3) mm - 10
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (g1) mm - 3
Boundary Dimension (H) mm - 5
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.5
Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 13
Basic Dynamic Load Rating (C) N - 5430
Basic Static Load Rating (C0) N - 6890
Maximum Allowable Static Load (N) - 6890
Shield Type (with Cylindrical Outer Ring) - CFKRE 22
Sealed Type (with Cylindrical Outer Ring) - CFKRE 22 UUR
Shield Type (with Cylindrical Outer Ring) - CFKRE 22 UU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFKRE - Eccentric Type Cam Followers(Double Hex Hole )
R - With Crowned Outer Ring

** Images are for representation purposes only
