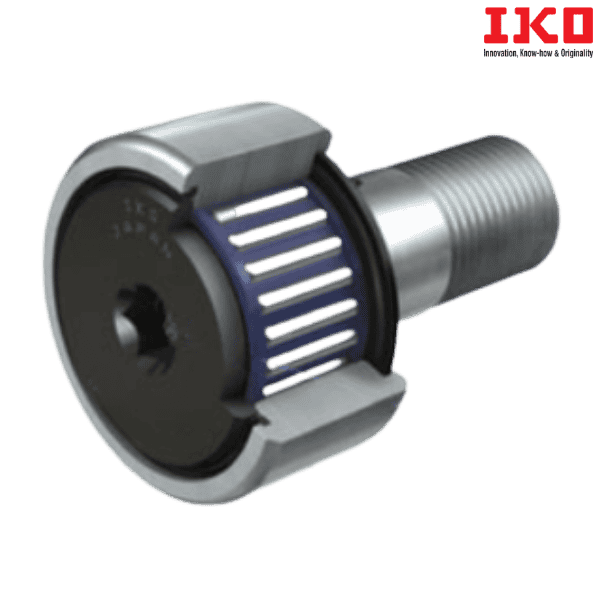

CFKR 72 VR IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFKR 72 VR IKO
Also Known As - CFKR72VR
Type - Shield Type (Crowned Outer Ring)
Stud Diameter (d) mm - 24
Weight (kg) - 1.12

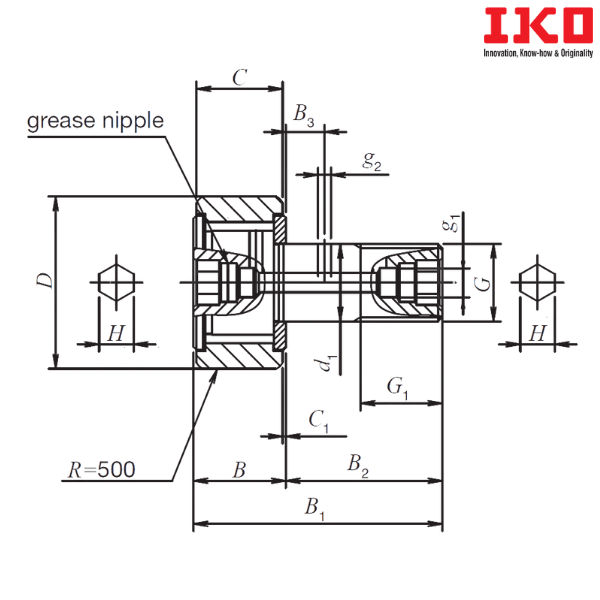

Outside Diameter of Outer Diameter (D) mm - 72
Width of Outer Ring (C) mm - 29
Boundary Dimension (d1) mm - 24
G - M24×1.5
Boundary Dimension (G1) mm - 25
Maximum Boundary Dimension (B) mm - 30.6
Maximum Boundary Dimension (B1) mm - 80.1
Boundary Dimension (B2) mm - 49.5
Boundary Dimension (B3) mm - 11
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 6
Boundary Dimension (g2) mm - 4
Boundary Dimension (H) mm - 14
Minimum Allowable Value of Chamfer Dimension (rs min) - 1

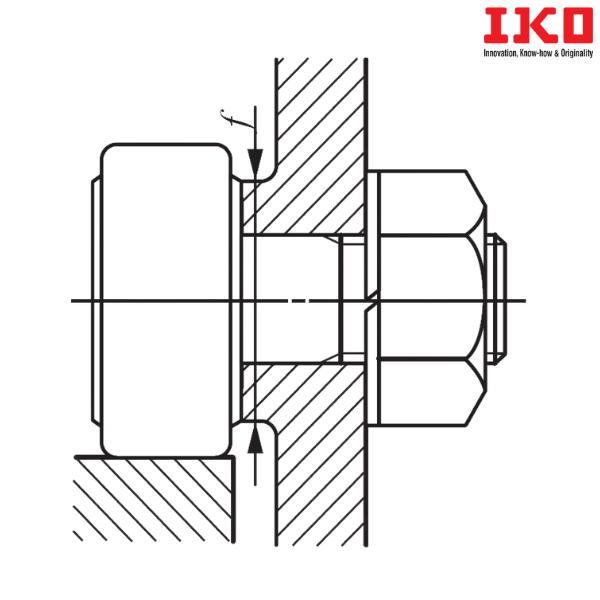

Minimum Mounting Dimension (f min) mm - 40
Maximum Tightening Torque (N-m) - 215
Basic Dynamic Load Rating (C) N - 46600
Basic Static Load Rating (C0) N - 92000
Maximum Allowable Static Load (N) - 52000
Shield Type (Cylindrical Outer Ring) - CFKR 72 V
Sealed Type (Crowned Outer Ring) - CFKR 72 VUUR
Sealed Type (Cylindrical Outer Ring) - CFKR 72 VUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFKR - Standard Type Cam Follower(Double Hex Hole )
R - With Crowned Outer Ring
V - Full Complement Type

** Images are for representation purposes only
