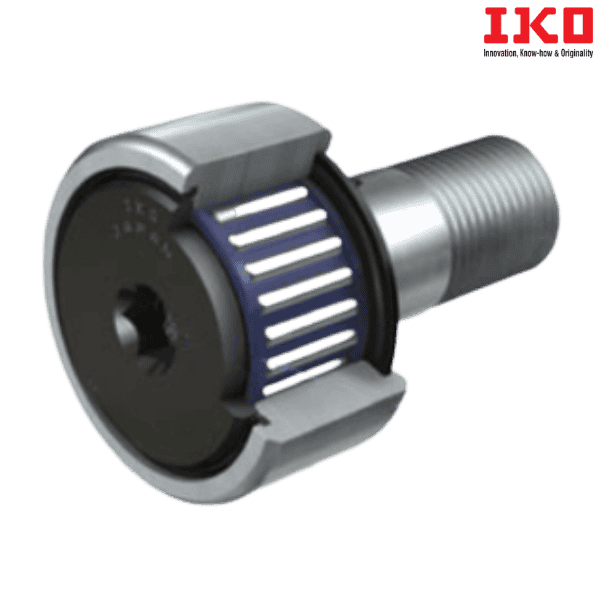

CFKR 35 VUU IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFKR 35 VUU IKO
Also Known As - CFKR35VUU
Type - Sealed Type (Cylindrical Outer Ring)

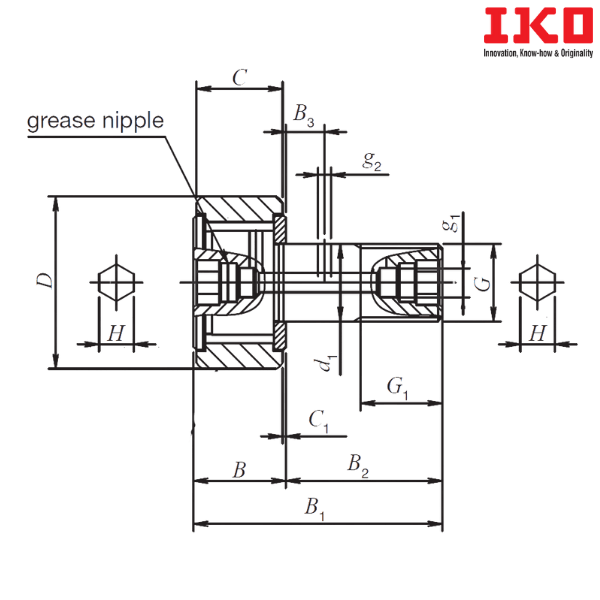

Stud Diameter (d) mm - 16
Weight (kg) - 0.168
Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (d1) mm - 16
G - M16×1.5
Boundary Dimension (G1) mm - 17
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (B3) mm - 8
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 4
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 8

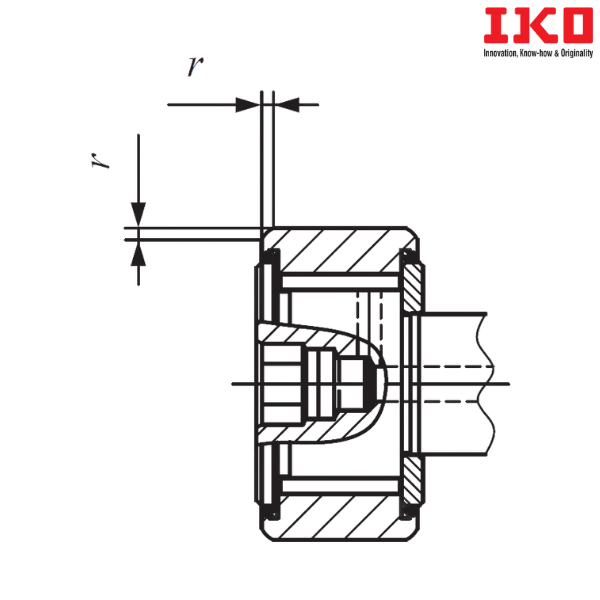

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6

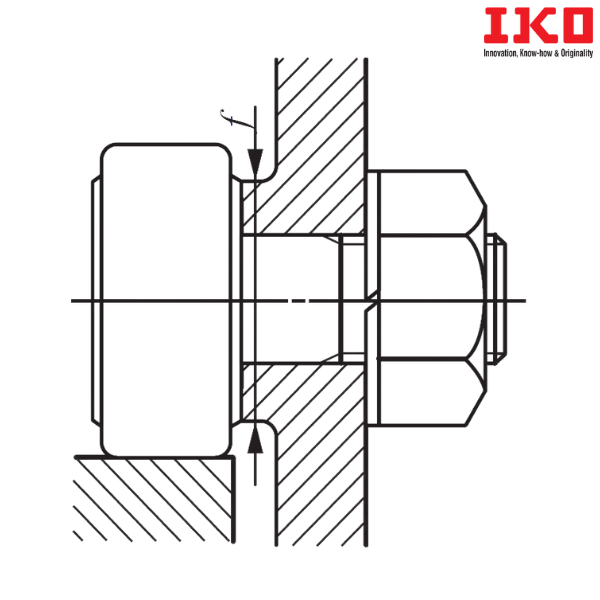

Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 20700
Basic Static Load Rating (C0) N - 37600
Maximum Allowable Static Load (N) - 23200
Shield Type (Crowned Outer Ring) - CFKR 35 VR
Shield Type (Cylindrical Outer Ring) - CFKR 35 V
Sealed Type (Crowned Outer Ring) - CFKR 35 VUUR

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFKR - Standard Type Cam Follower(Double Hex Hole )
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
