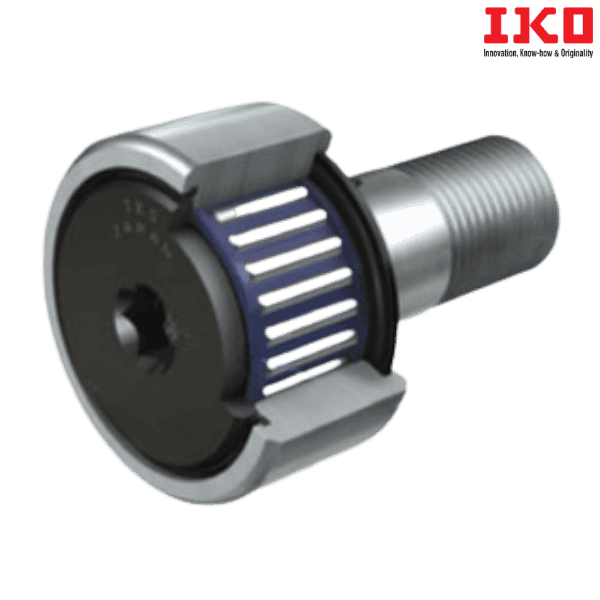

CFKR 30 UUR IKO

Brand - IKO
Category - Standard Type Cam Followers (With Cage/Double Hex Hole)
Item Number - CFKR 30 UUR IKO
Also Known As - CFKR30UUR

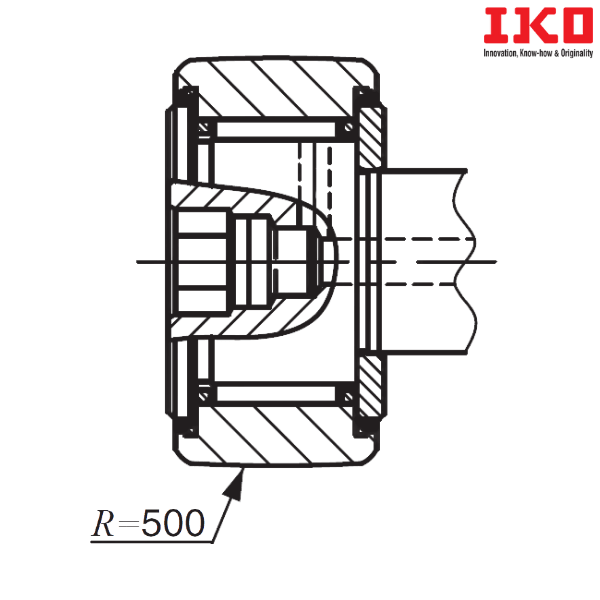

Type - Sealed Type (Crowned Outer Ring)

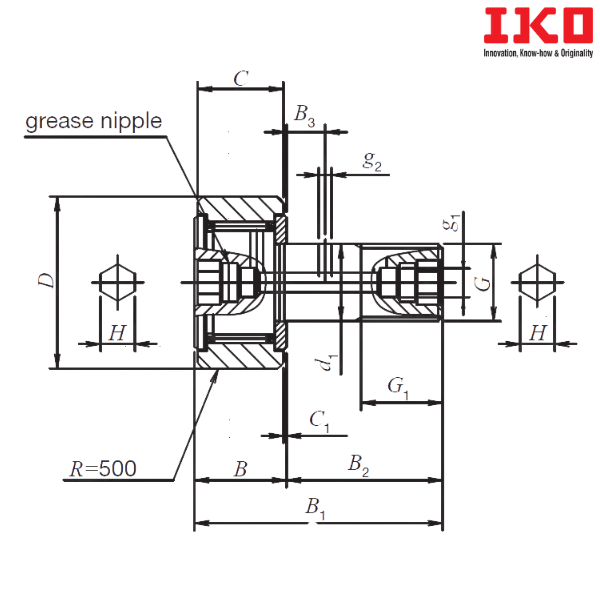

Stud Diameter (d) mm - 12
Weight (kg) - 0.094
Outside Diameter of Outer Diameter (D) mm - 30
Width of Outer Ring (C) mm - 14
Boundary Dimension (d1) mm - 12
G - M12×1.5
Boundary Dimension (G1) mm - 13
Maximum Boundary Dimension (B) mm - 15.2
Maximum Boundary Dimension (B1) mm - 40.2
Boundary Dimension (B2) mm - 25
Boundary Dimension (B3) mm - 6
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (g1) mm - 4
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6

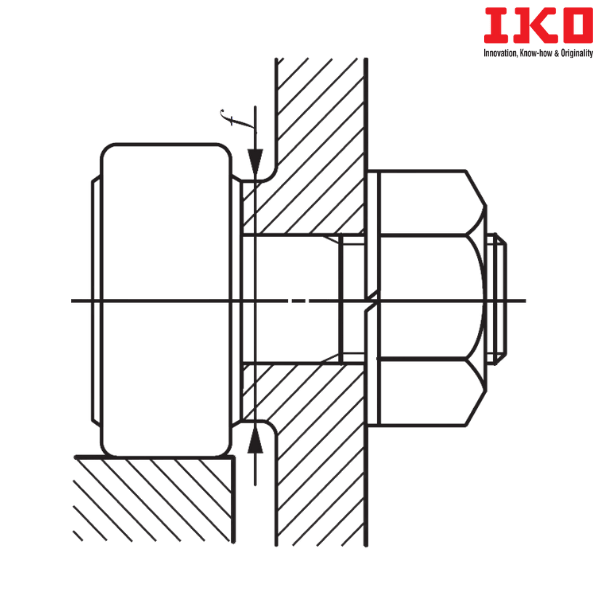

Minimum Mounting Dimension (f min) mm - 21
Maximum Tightening Torque (N-m) - 21.9
Basic Dynamic Load Rating (C) N - 7910
Basic Static Load Rating (C0) N - 9790
Maximum Allowable Static Load (N) - 9790
Shield Type (Crowned Outer Ring) - CFKR 30 R
Shield Type (Cylindrical Outer Ring) - CFKR 30
Sealed Type (Cylindrical Outer Ring) - CFKR 30 UU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFKR - Standard Type Cam Follower(Double Hex Hole )
R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
