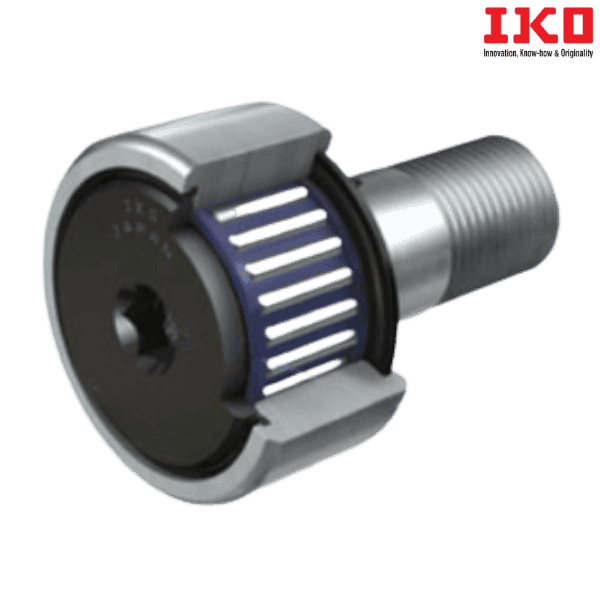

CFKR 26 VUU IKO

Brand - IKO
Category - Standard Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFKR 26 VUU IKO
Also Known As - CFKR26VUU
Type - Sealed Type (Cylindrical Outer Ring)

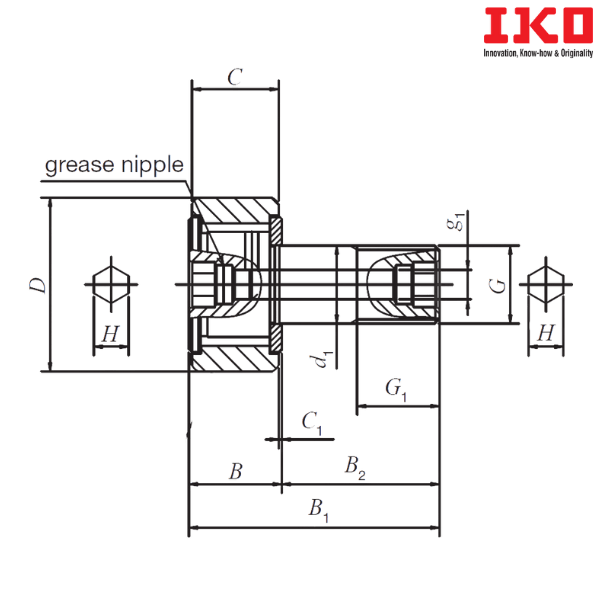

Stud Diameter (d) mm - 10
Weight (kg) - 0.059
Outside Diameter of Outer Diameter (D) mm - 26
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
G - M10×1.0
Boundary Dimension (G1) mm - 12
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 36.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (g1) mm - 3
Boundary Dimension (H) mm - 5

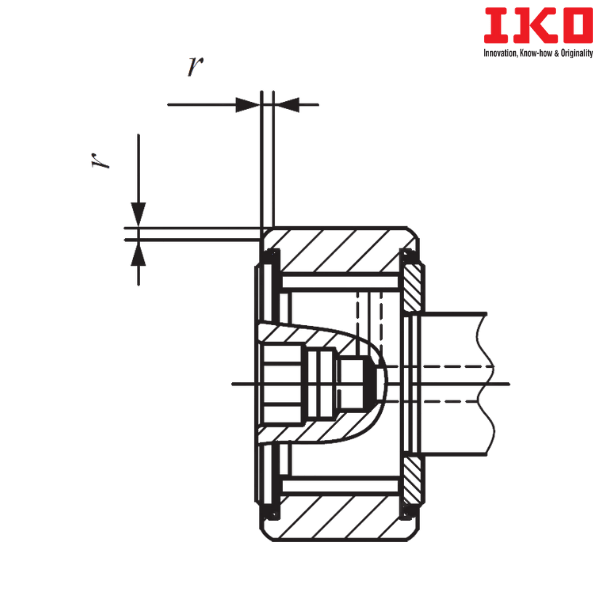

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3

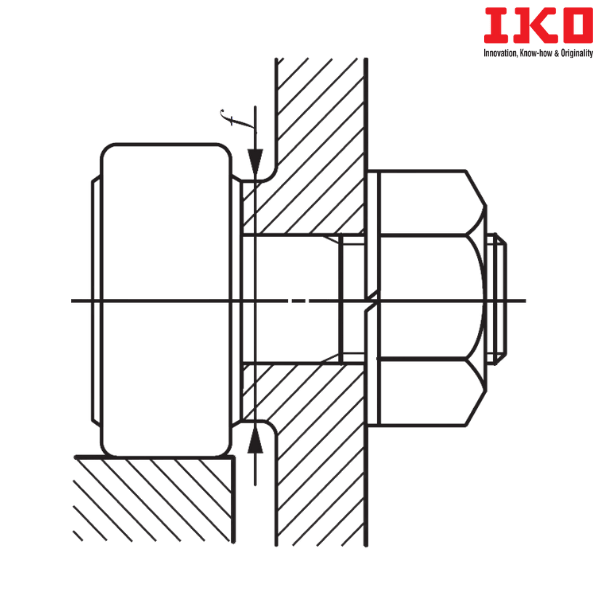

Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 13
Basic Dynamic Load Rating (C) N - 9570
Basic Static Load Rating (C0) N - 14500
Maximum Allowable Static Load (N) - 7920
Shield Type (Crowned Outer Ring) - CFKR 26 VR
Shield Type (Cylindrical Outer Ring) - CFKR 26 V
Sealed Type (Crowned Outer Ring) - CFKR 26 VUUR

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFKR - Standard Type Cam Follower(Double Hex Hole )
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
