CFES 8 B IKO

Brand - IKO

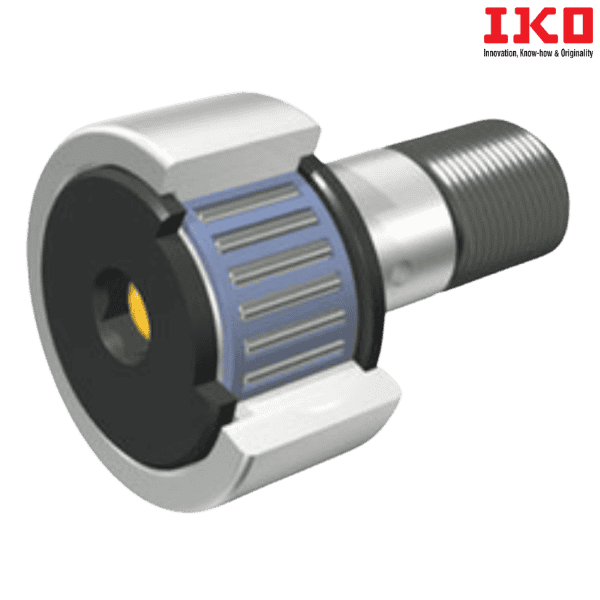

Category - Solid Eccentric Stud Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFES 8 B
Also Known as - CFES8B
Type - Shield Type (with Cylindrical Outer Ring)
Stud Diameter (mm) - 8
Weight (kg) - 0.0285

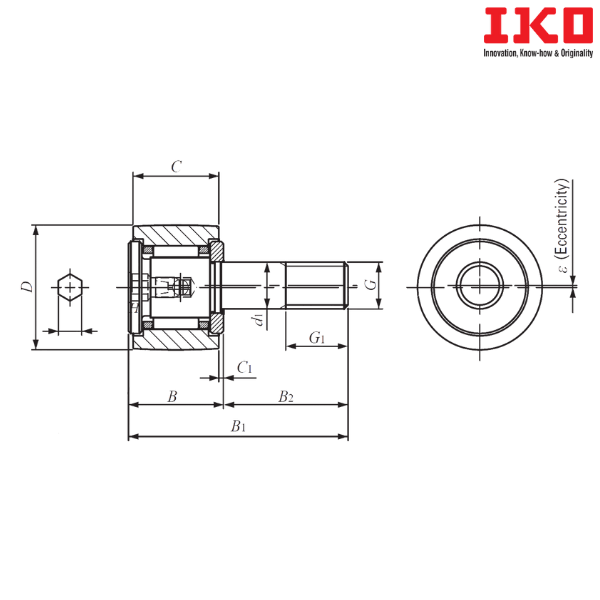

Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 8
G - M8×1.25
Boundary Dimension (G1) mm - 10
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32.2
Boundary Dimension (B2) mm - 20
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4

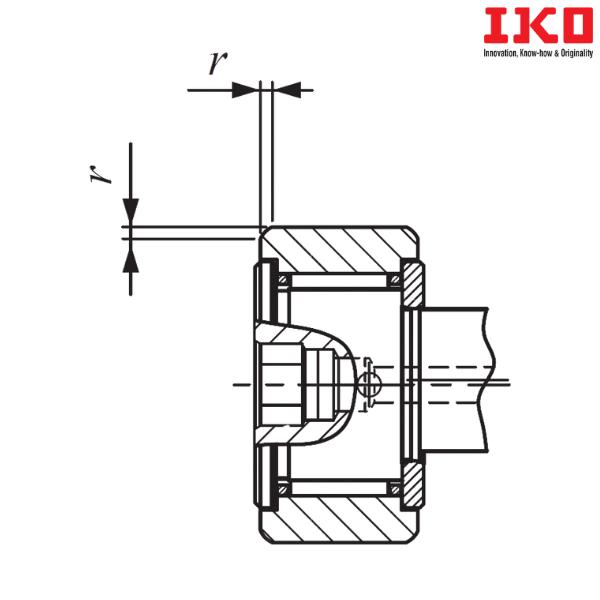

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.25

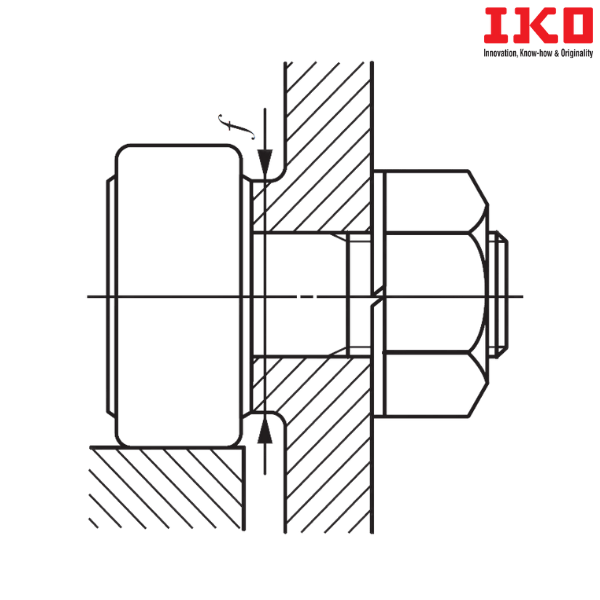

Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 6.5
Basic Dynamic Load Rating (C) N - 4250
Basic Static Load Rating (C0) N - 4740
Maximum Allowable Static Load (N) - 4670
Shield Type (with Crowned Outer Ring) - CFES 8 BR
Sealed Type (with Crowned Outer Ring) - CFES 8 BUUR
Sealed Type (with Cylindrical Outer Ring) - CFES 8 BUU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFES...B - Solid Eccentric Stud Type Cam Followers
