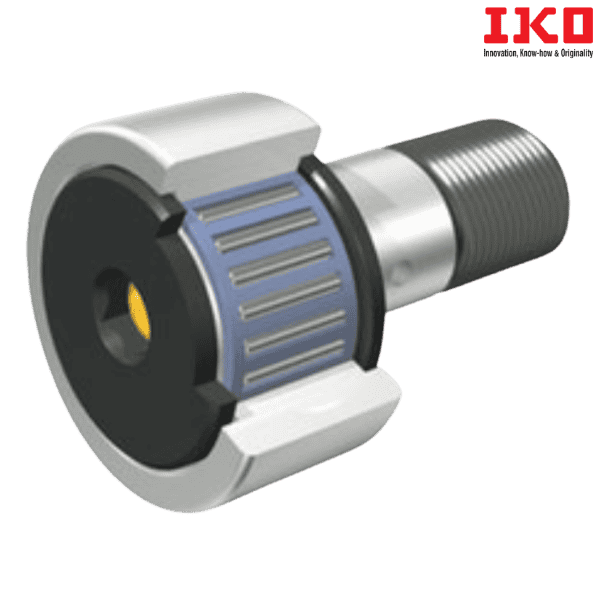

CFES 16 BUUR IKO

Brand - IKO
Category - Solid Eccentric Stud Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFES 16 BUUR
Also Known as - CFES16BUUR
Type - Sealed Type (with Crowned Outer Ring)
Stud Diameter (mm) - 16
Weight (kg) - 0.17

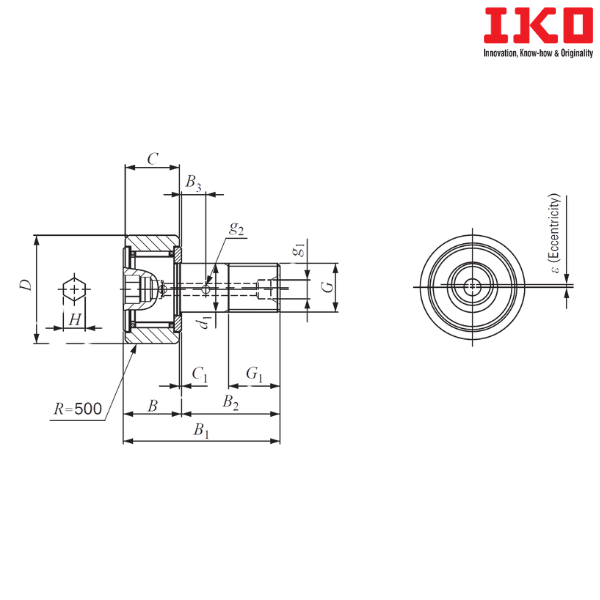

Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (d1) mm - 16
G - M16×1.5
Boundary Dimension (G1) mm - 17
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (B3) mm - 8
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 4
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6
Eccentricity (ε) mm - 0.5

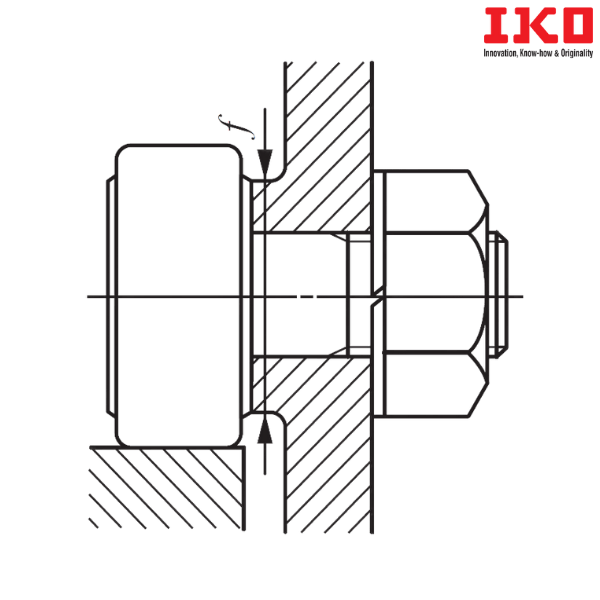

Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 12000
Basic Static Load Rating (C0) N - 18300
Maximum Allowable Static Load (N) - 18300
Shield Type (with Crowned Outer Ring) - CFES 16 BR
Shield Type (with Cylindrical Outer Ring) - CFES 16 B
Sealed Type (with Cylindrical Outer Ring) - CFES 16 BUU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFES...B - Solid Eccentric Stud Type Cam Followers
R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
