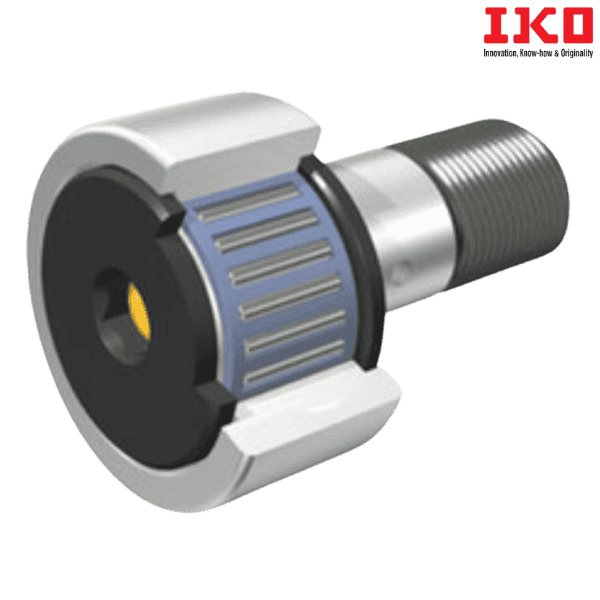

CFES 12 BUUR IKO

Brand - IKO
Category - Solid Eccentric Stud Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFES 12 BUUR
Also Known as - CFES12BUUR
Type - Sealed Type (with Crowned Outer Ring)
Stud Diameter (mm) - 12
Weight (kg) - 0.095

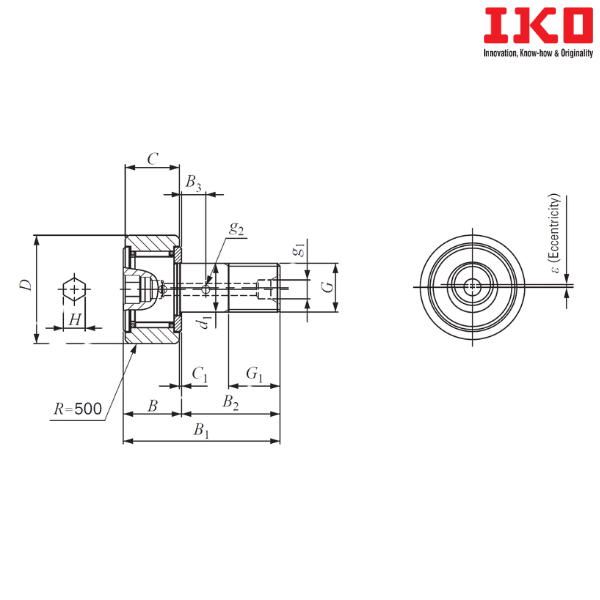

Outside Diameter of Outer Diameter (D) mm - 30
Width of Outer Ring (C) mm - 14
Boundary Dimension (d1) mm - 12
G - M12×1.5
Boundary Dimension (G1) mm - 13
Maximum Boundary Dimension (B) mm - 15.2
Maximum Boundary Dimension (B1) mm - 40.2
Boundary Dimension (B2) mm - 25
Boundary Dimension (B3) mm - 6
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (g1) mm - 4
Boundary Dimension (g2) mm - 3
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6
Eccentricity (ε) mm - 0.4

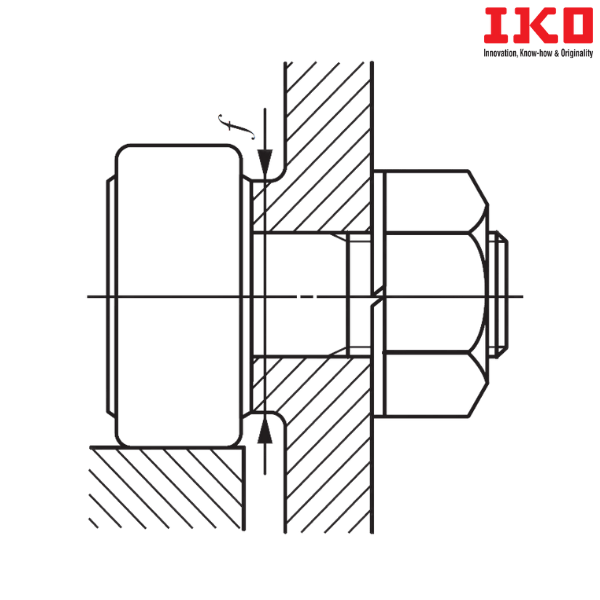

Minimum Mounting Dimension (f min) mm - 21
Maximum Tightening Torque (N-m) - 21.9
Basic Dynamic Load Rating (C) N - 7910
Basic Static Load Rating (C0) N - 9790
Maximum Allowable Static Load (N) - 9790
Shield Type (with Crowned Outer Ring) - CFES 12 BR
Shield Type (with Cylindrical Outer Ring) - CFES 12 B
Sealed Type (with Cylindrical Outer Ring) - CFES 12 BUU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFES...B - Solid Eccentric Stud Type Cam Followers
R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
