CFES 10 BUUR IKO

Brand - IKO
Category - Solid Eccentric Stud Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFES 10 BUUR
Also Known as - CFES10BUUR
Type - Sealed Type (with Crowned Outer Ring)
Stud Diameter (mm) - 10
Weight (kg) - 0.045

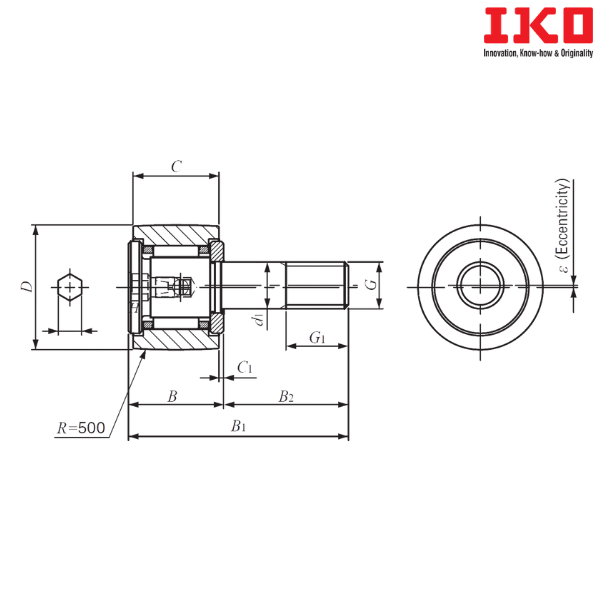

Outside Diameter of Outer Diameter (D) mm - 22
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
G - M10×1.25
Boundary Dimension (G1) mm - 12
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 36.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (H) mm - 4
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.3

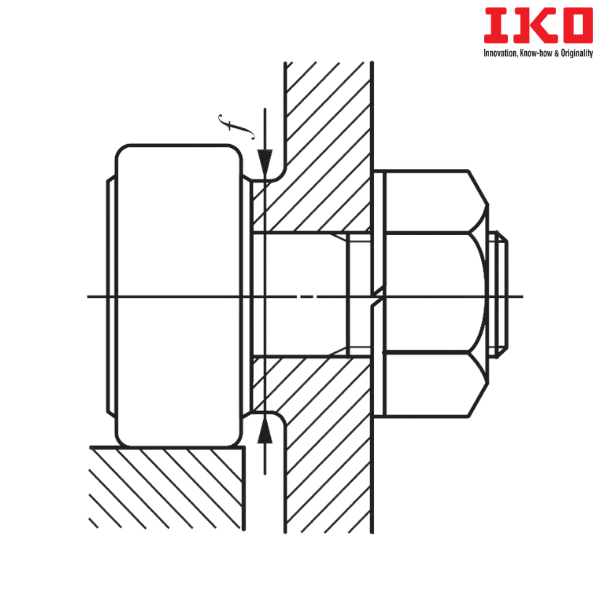

Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 13.8
Basic Dynamic Load Rating (C) N - 5430
Basic Static Load Rating (C0) N - 6890
Maximum Allowable Static Load (N) - 6890
Shield Type (with Crowned Outer Ring) - CFES 10 BR
Shield Type (with Cylindrical Outer Ring) - CFES 10 B
Sealed Type (with Cylindrical Outer Ring) - CFES 10 BUU

Notes :

Descriptions of Prefixes and Suffixes :
---------------------------------------------------
CFES...B - Solid Eccentric Stud Type Cam Followers
R - With Crowned Outer Ring
UU - Sealed Type

** Images are for representation purposes only
