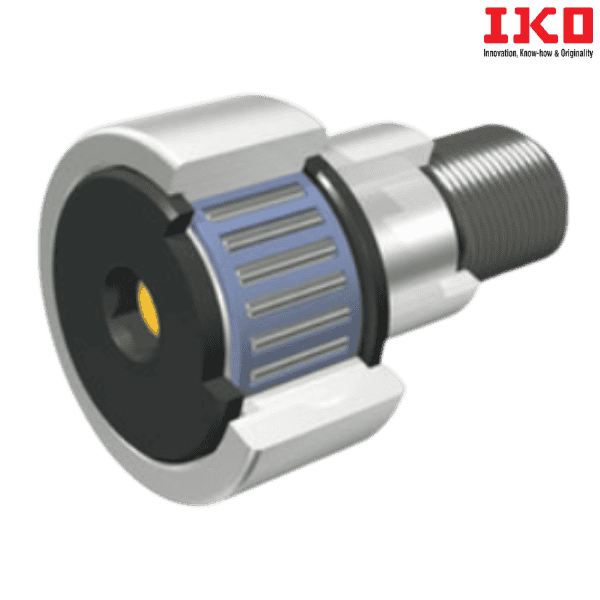

CFE 8 VBUUR IKO

Brand - IKO
Category - Eccentric Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFE 8 VBUUR IKO
Also Known As - CFE8VBUUR
Type - Sealed Type (with Crowned Outer Ring)
Outside Diameter (mm) - 11
Weight (kg) - 0.0325
Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (de) mm - 11
G - M8×1.25
Boundary Dimension (B3) mm - 9.5
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32.2
Boundary Dimension (B2) mm - 20
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (G1) mm - 10.5
Boundary Dimension (H) mm - 4
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.4

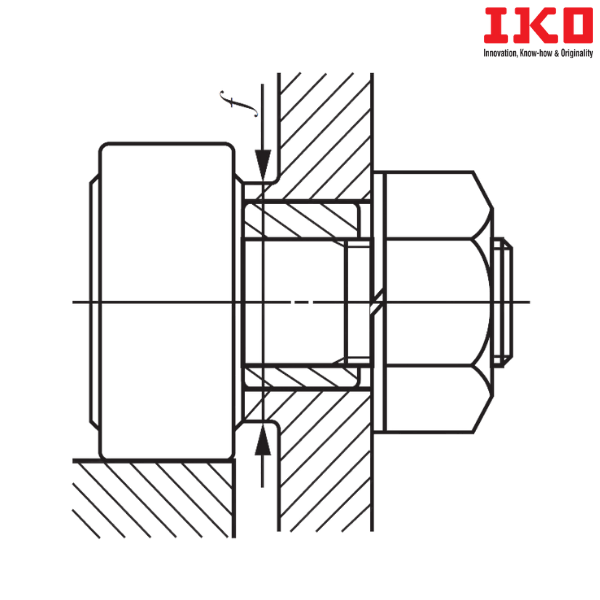

Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 6.5
Basic Dynamic Load Rating (C) N - 4250
Basic Static Load Rating (C0) N - 4740
Maximum Allowable Static Load (N) - 4620
Shield Type (with Crowned Outer Ring) - CFE 8 VBR
Shield Type (with Cylindrical Outer Ring) - CFE 8 VB
Sealed Type (with Cylindrical Outer Ring) - CFE 8 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
R - With Crowned Outer Ring
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
