CFE 8 B IKO

Brand - IKO
Category - Eccentric Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFE 8 B IKO
Also Known As - CFE8B

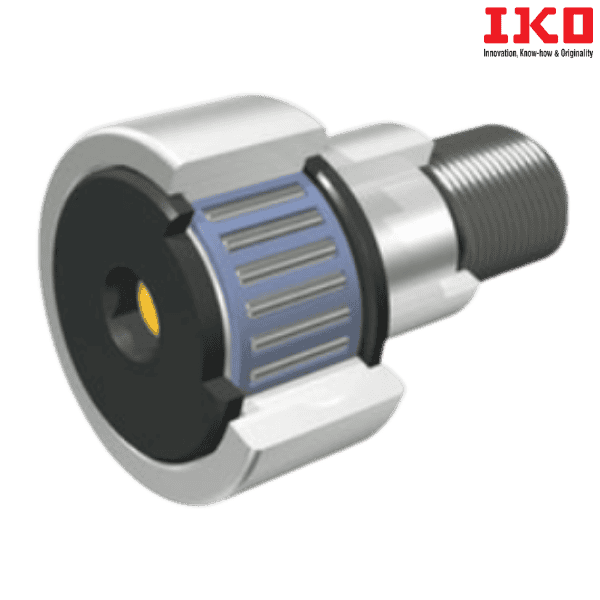

Type - Shield Type (with Cylindrical Outer Ring)
Outside Diameter of Eccentric Collar (mm) - 11
Weight (kg) - 0.032

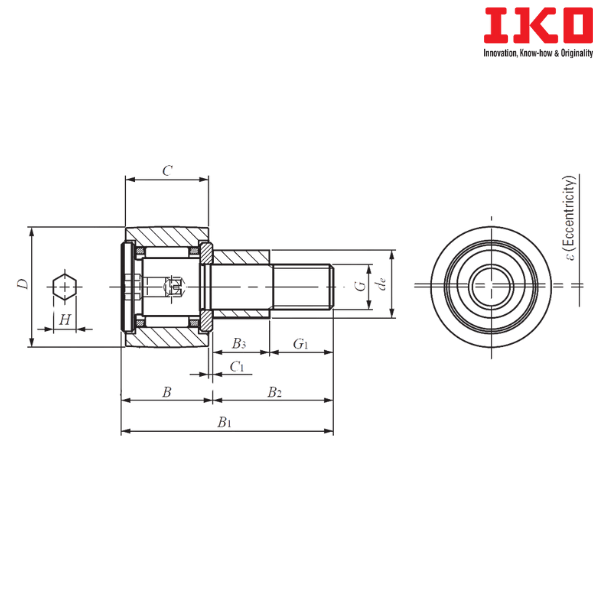

Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (de) mm - 11
G - M8×1.25
Boundary Dimension (B3) mm - 9.5
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 32.2
Boundary Dimension (B2) mm - 20
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (G1) mm - 10.5
Boundary Dimension (H) mm - 4

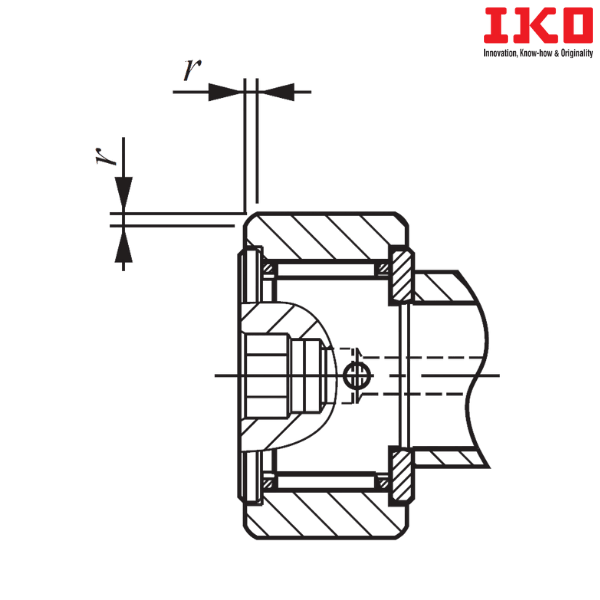

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.4

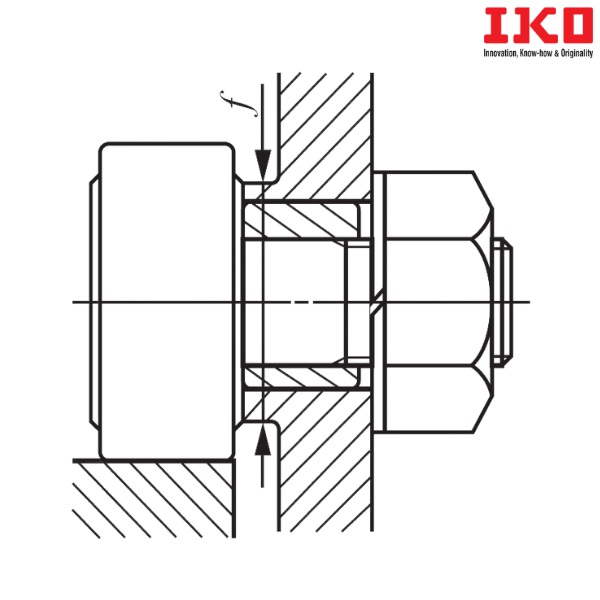

Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 6.5
Basic Dynamic Load Rating (C) N - 4250
Basic Static Load Rating (C0) N - 4740
Maximum Allowable Static Load (N) - 4620
Shield Type (with Crowned Outer Ring) - CFE 8 BR
Sealed Type (with Crowned Outer Ring) - CFE 8 BUUR
Sealed Type (with Cylindrical Outer Ring) - CFE 8 BUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)

** Images are for representation purposes only
