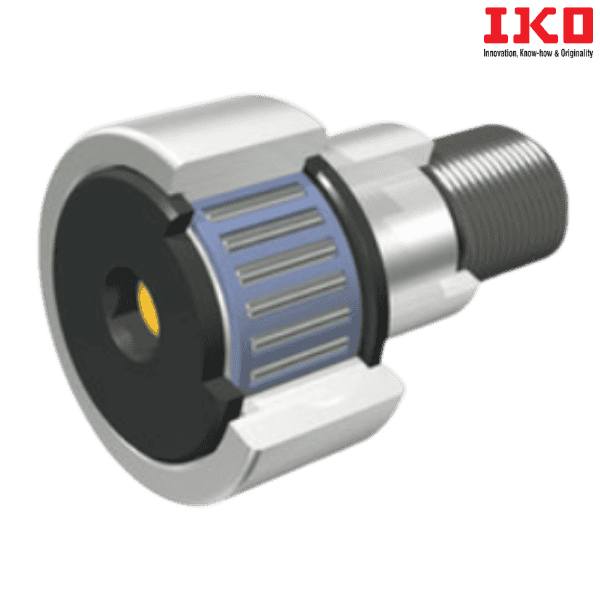

CFE 6 VBUUR IKO

Brand - IKO
Category - Eccentric Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFE 6 VBUUR IKO
Also Known As - CFE6VBUUR
Type - Sealed Type (with Crowned Outer Ring)
Outside Diameter (mm) - 9
Weight (kg) - 0.021

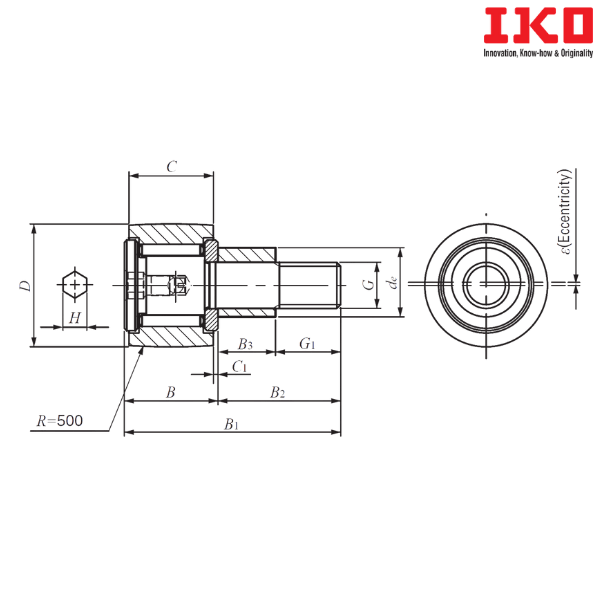

Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (de) mm - 9
G - M6×1
Boundary Dimension (B3) mm - 7.5
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 28.2
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (G1) mm - 8.5
Boundary Dimension (H) mm - 3
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.4

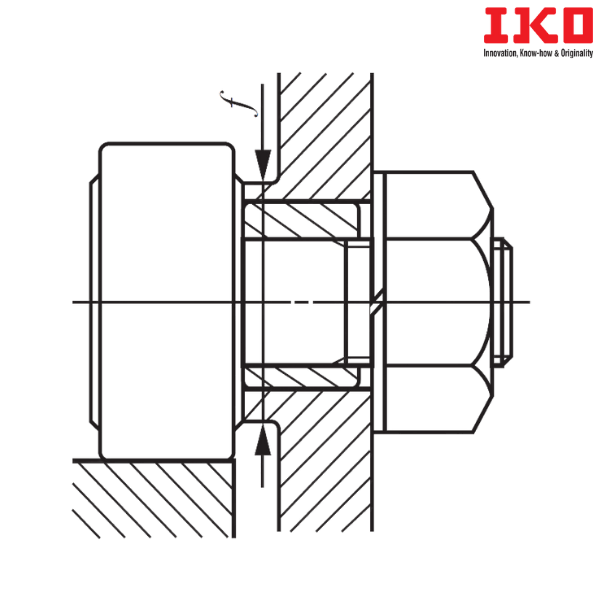

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 3660
Basic Static Load Rating (C0) N - 3650
Maximum Allowable Static Load (N) - 1950
Shield Type (with Crowned Outer Ring) - CFE 6 VBR
Shield Type (with Cylindrical Outer Ring) - CFE 6 VB
Sealed Type (with Cylindrical Outer Ring) - CFE 6 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
R - With Crowned Outer Ring
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
