CFE 6 B IKO

Brand - IKO
Category - Eccentric Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFE 6 B IKO
Also Known As - CFE6B
Type - Shield Type (with Cylindrical Outer Ring)
Outside Diameter of Eccentric Collar (mm) - 9
Weight (kg) - 0.0205

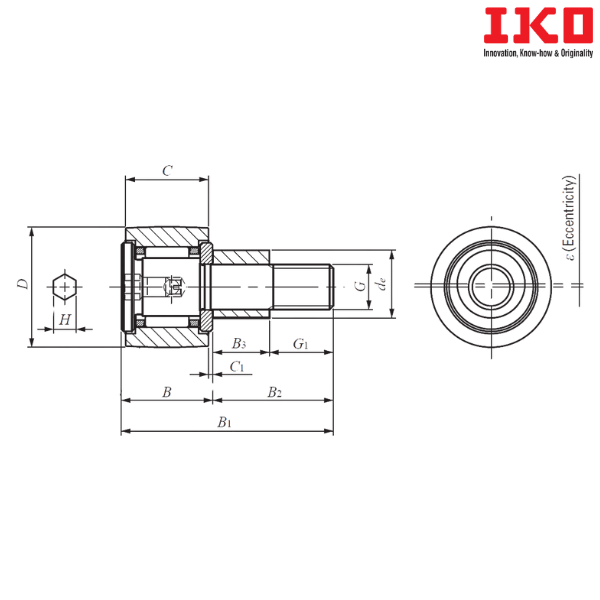

Outside Diameter of Outer Diameter (D) mm - 16
Width of Outer Ring (C) mm - 11
Boundary Dimension (de) mm - 9
G - M6×1
Boundary Dimension (B3) mm - 7.5
Maximum Boundary Dimension (B) mm - 12.2
Maximum Boundary Dimension (B1) mm - 28.2
Boundary Dimension (B2) mm - 16
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (G1) mm - 8.5
Boundary Dimension (H) mm - 3

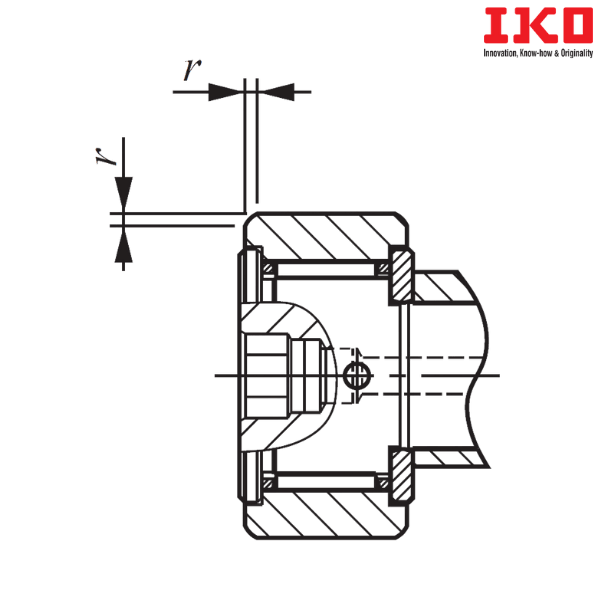

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.4

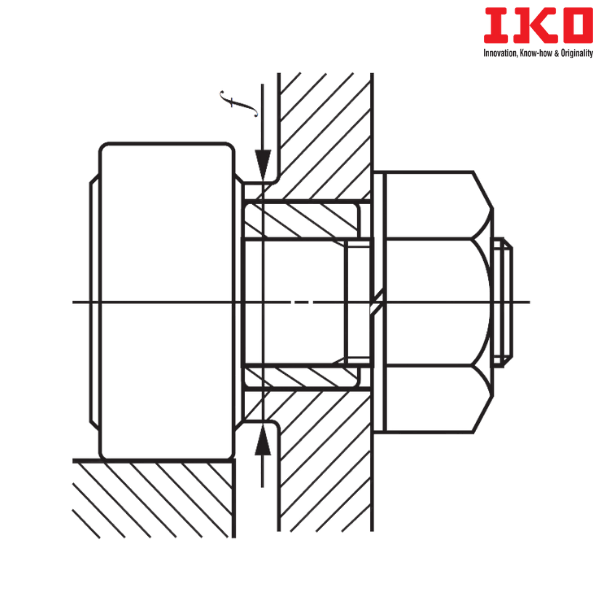

Minimum Mounting Dimension (f min) mm - 11
Maximum Tightening Torque (N-m) - 2.7
Basic Dynamic Load Rating (C) N - 3660
Basic Static Load Rating (C0) N - 3650
Maximum Allowable Static Load (N) - 1950
Shield Type (with Crowned Outer Ring) - CFE 6 BR
Sealed Type (with Crowned Outer Ring) - CFE 6 BUUR
Sealed Type (with Cylindrical Outer Ring) - CFE 6 BUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)

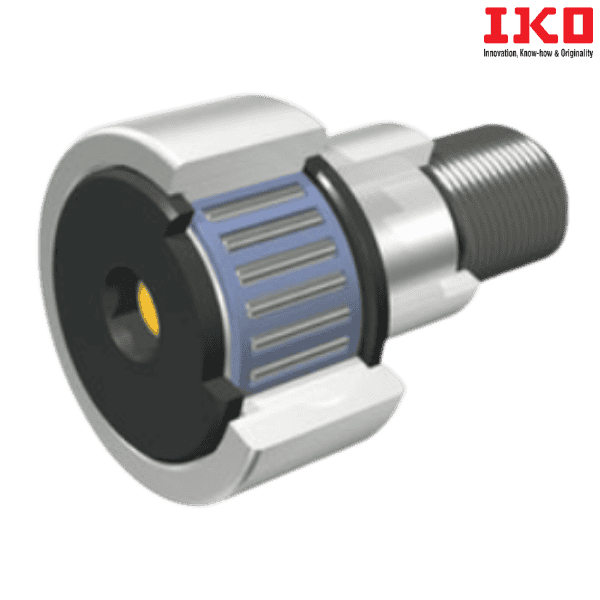

** Images are for representation purposes only
