CFE 30 VBUU IKO

Brand - IKO
Category - Eccentric Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFE 30 VBUU IKO
Also Known As - CFE30VBUU
Type - Sealed Type (with Cylindrical Outer Ring)
Outside Diameter (mm) - 41
Weight (kg) - 2.03
Outside Diameter of Outer Diameter (D) mm - 80
Width of Outer Ring (C) mm - 35
Boundary Dimension (de) mm - 41
G - M30×1.5
Boundary Dimension (B3) mm - 32.5
Maximum Boundary Dimension (B) mm - 37
Maximum Boundary Dimension (B1) mm - 100
Boundary Dimension (B2) mm - 63
Boundary Dimension (C1) mm - 1
Boundary Dimension (g1) mm - 6
Boundary Dimension (G1) mm - 30.5
Boundary Dimension (H) mm - 17

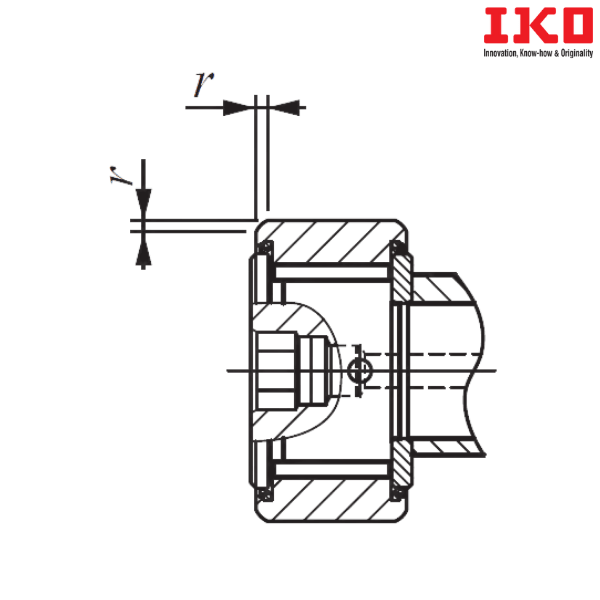

Minimum Allowable Value of Chamfer Dimension (rs min) - 1
Eccentricity (ε) mm - 1.5

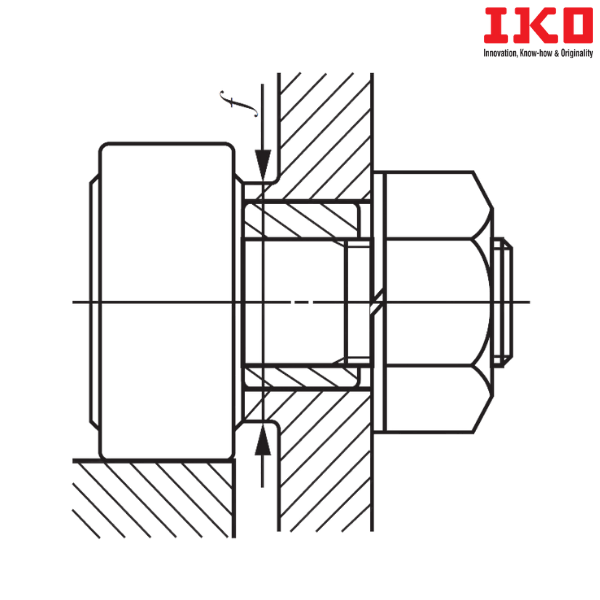

Minimum Mounting Dimension (f min) mm - 49
Maximum Tightening Torque (N-m) - 438
Basic Dynamic Load Rating (C) N - 45400
Basic Static Load Rating (C0) N - 85100
Maximum Allowable Static Load (N) - 85100
Shield Type (with Crowned Outer Ring) - CFE 30 VBR
Shield Type (with Cylindrical Outer Ring) - CFE 30 VB
Sealed Type (with Crowned Outer Ring) - CFE 30 VBUUR

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
V - Full Complement Type
UU - Sealed Type

** Images are for representation purposes only
