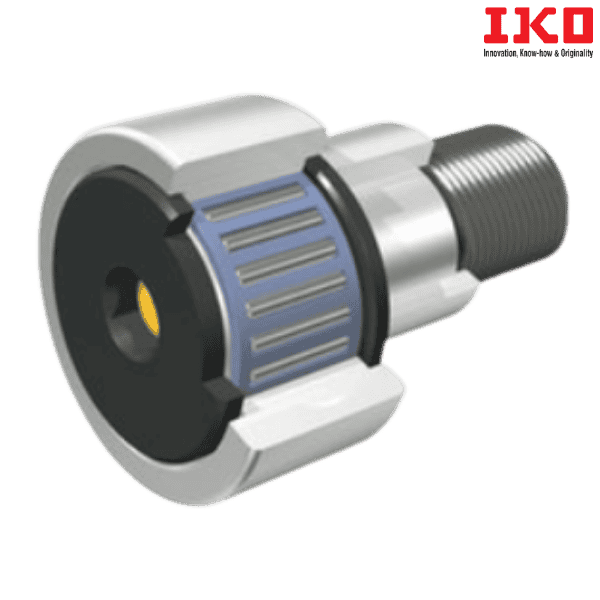

CFE 24-1 VBR IKO

Brand - IKO
Category - Eccentric Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFE 24-1 VBR IKO
Also Known As - CFE24-1VBR
Type - Shield Type (with Crowned Outer Ring)
Weight (kg) - 1.22

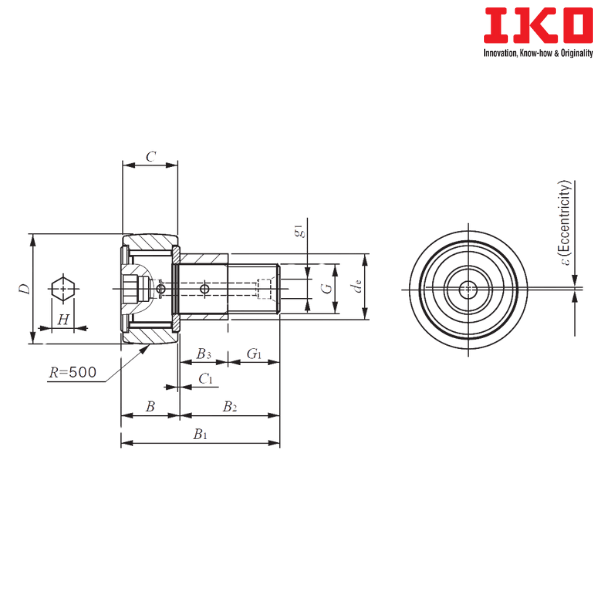

Outside Diameter of Outer Diameter (D) mm - 72
Width of Outer Ring (C) mm - 29
Boundary Dimension (de) mm - 33
G - M24×1.5
Boundary Dimension (B3) mm - 25.5
Maximum Boundary Dimension (B) mm - 30.6
Maximum Boundary Dimension (B1) mm - 80.1
Boundary Dimension (B2) mm - 49.5
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 6
Boundary Dimension (G1) mm - 24
Boundary Dimension (H) mm - 12
Minimum Allowable Value of Chamfer Dimension (rs min) - 1
Eccentricity (ε) mm - 0.8

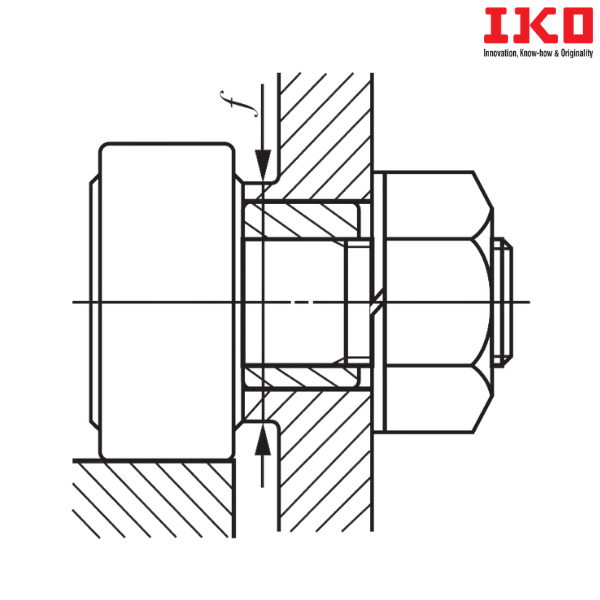

Minimum Mounting Dimension (f min) mm - 40
Maximum Tightening Torque (N-m) - 215
Basic Dynamic Load Rating (C) N - 30500
Basic Static Load Rating (C0) N - 52600
Maximum Allowable Static Load (N) - 52000
Shield Type (with Cylindrical Outer Ring) - CFE 24-1 VB
Sealed Type (with Crowned Outer Ring) - CFE 24-1 VBUUR
Sealed Type (with Cylindrical Outer Ring) - CFE 24-1 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
R - With Crowned Outer Ring
V - Full Complement Type

** Images are for representation purposes only
