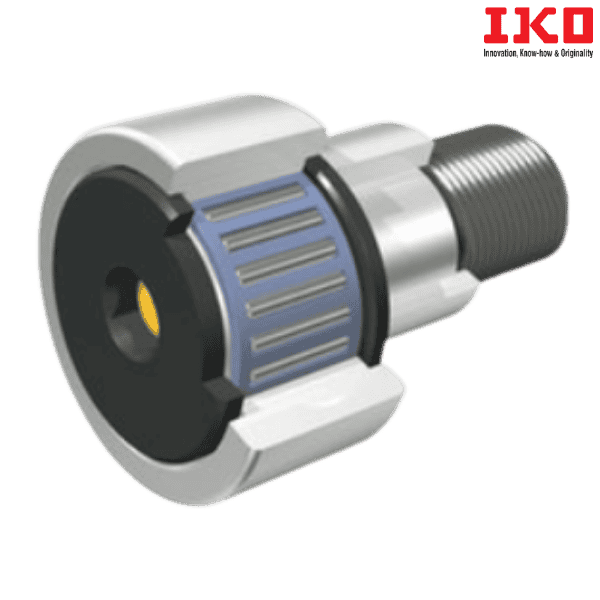

CFE 16 BR IKO

Brand - IKO
Category - Eccentric Type Cam Followers (With Cage/Stud Head Hex Hole)
Item Number - CFE 16 BR IKO
Also Known As - CFE16BR
Type - Shield Type (with Crowned Outer Ring)
Outside Diameter of Eccentric Collar (mm) - 22
Weight (kg) - 0.19
Outside Diameter of Outer Diameter (D) mm - 35
Width of Outer Ring (C) mm - 18
Boundary Dimension (de) mm - 22
G - M16×1.5
Boundary Dimension (B3) mm - 15.5
Maximum Boundary Dimension (B) mm - 19.6
Maximum Boundary Dimension (B1) mm - 52.1
Boundary Dimension (B2) mm - 32.5
Boundary Dimension (C1) mm - 0.8
Boundary Dimension (g1) mm - 4
Boundary Dimension (G1) mm - 17
Boundary Dimension (H) mm - 6
Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6
Eccentricity (ε) mm - 0.8

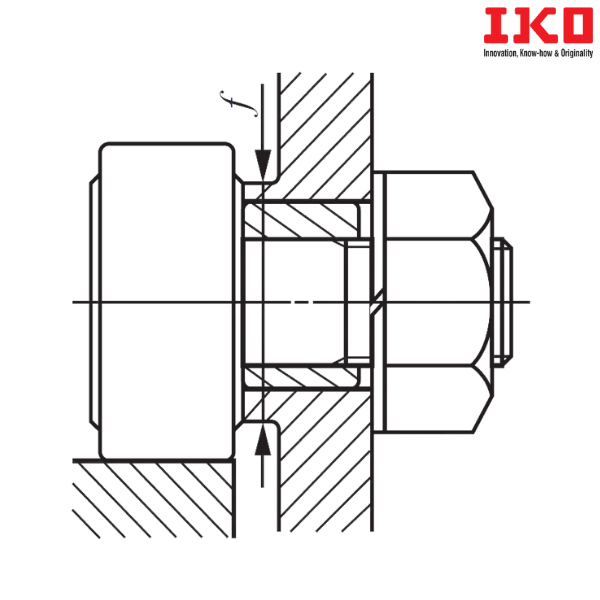

Minimum Mounting Dimension (f min) mm - 26
Maximum Tightening Torque (N-m) - 58.5
Basic Dynamic Load Rating (C) N - 12000
Basic Static Load Rating (C0) N - 18300
Maximum Allowable Static Load (N) - 18300
Shield Type (with Cylindrical Outer Ring) - CFE 16 B
Sealed Type (with Crowned Outer Ring) - CFE 16 BUUR
Sealed Type (with Cylindrical Outer Ring) - CFE 16 BUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
R - With Crowned Outer Ring

** Images are for representation purposes only
