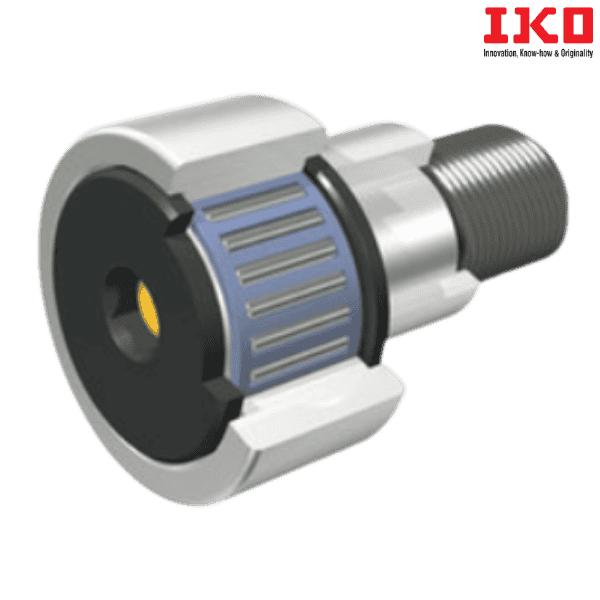

CFE 12 VB IKO

Brand - IKO
Category - Eccentric Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFE 12 VB IKO
Also Known As - CFE12VB
Type - Shield Type (with Cylindrical Outer Ring)
Outside Diameter (mm) - 16
Weight (kg) - 0.107

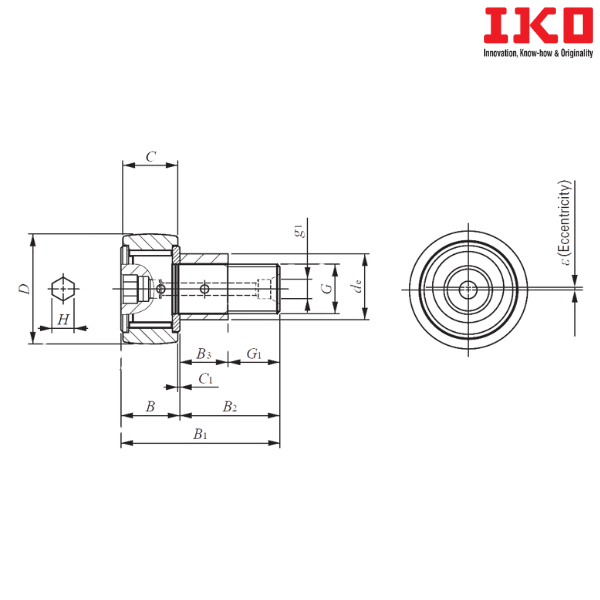

Outside Diameter of Outer Diameter (D) mm - 30
Width of Outer Ring (C) mm - 14
Boundary Dimension (de) mm - 16
G - M12×1.5
Boundary Dimension (B3) mm - 11.5
Maximum Boundary Dimension (B) mm - 15.2
Maximum Boundary Dimension (B1) mm - 40.2
Boundary Dimension (B2) mm - 25
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (g1) mm - 4
Boundary Dimension (G1) mm - 13.5
Boundary Dimension (H) mm - 6

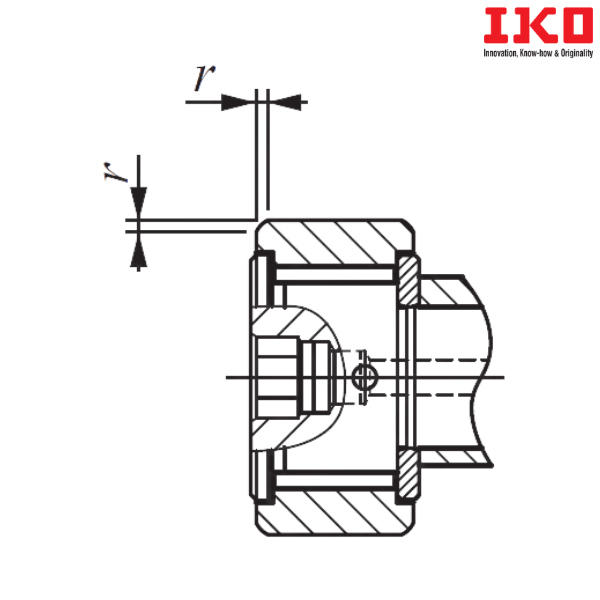

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.6
Eccentricity (ε) mm - 0.8

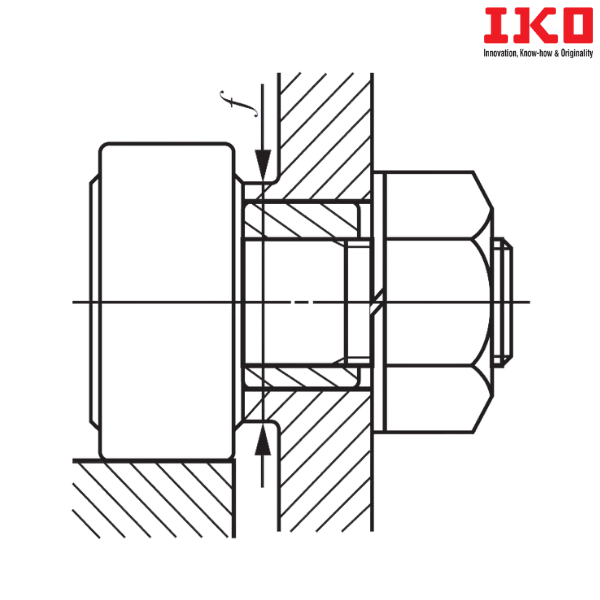

Minimum Mounting Dimension (f min) mm - 21
Maximum Tightening Torque (N-m) - 21.9
Basic Dynamic Load Rating (C) N - 7910
Basic Static Load Rating (C0) N - 9790
Maximum Allowable Static Load (N) - 9790
Shield Type (with Crowned Outer Ring) - CFE 12 VBR
Sealed Type (with Crowned Outer Ring) - CFE 12 VBUUR
Sealed Type (with Cylindrical Outer Ring) - CFE 12 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
V - Full Complement Type

** Images are for representation purposes only
