CFE 10 VB IKO

Brand - IKO

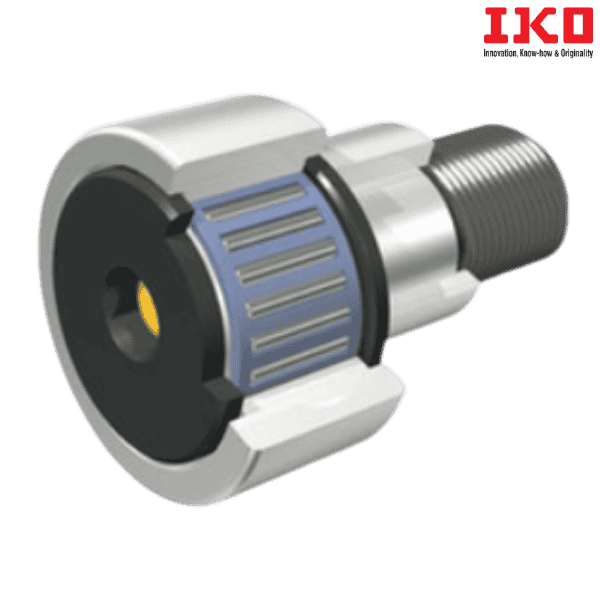

Category - Eccentric Type Cam Followers (Full Complement Type/Stud Head Hex Hole)
Item Number - CFE 10 VB IKO
Also Known As - CFE10VB
Type - Shield Type (with Cylindrical Outer Ring)
Outside Diameter (mm) - 13
Weight (kg) - 0.0505

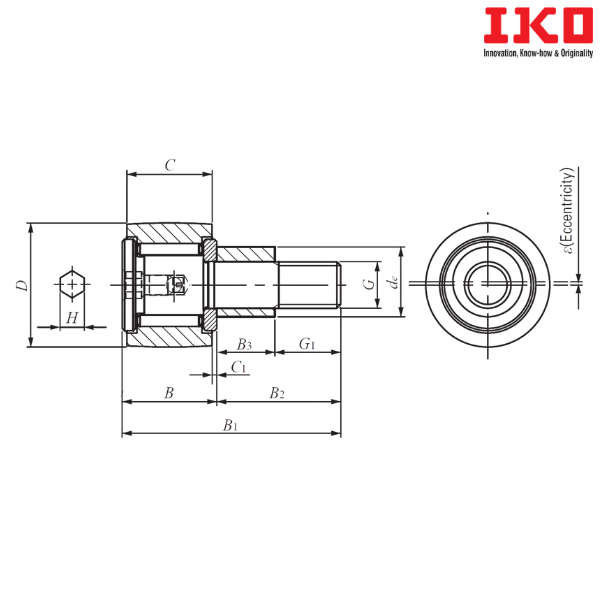

Outside Diameter of Outer Diameter (D) mm - 22
Width of Outer Ring (C) mm - 12
Boundary Dimension (de) mm - 13
G - M10×1.25
Boundary Dimension (B3) mm - 10.5
Maximum Boundary Dimension (B) mm - 13.2
Maximum Boundary Dimension (B1) mm - 36.2
Boundary Dimension (B2) mm - 23
Boundary Dimension (C1) mm - 0.6
Boundary Dimension (G1) mm - 12.5
Boundary Dimension (H) mm - 4

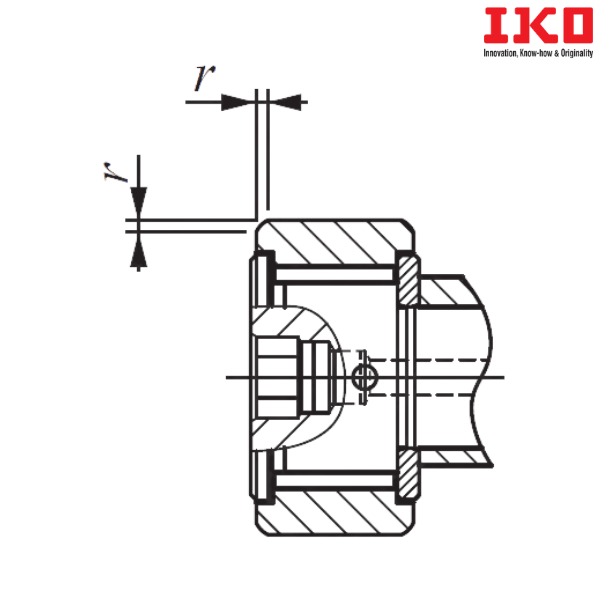

Minimum Allowable Value of Chamfer Dimension (rs min) - 0.3
Eccentricity (ε) mm - 0.4

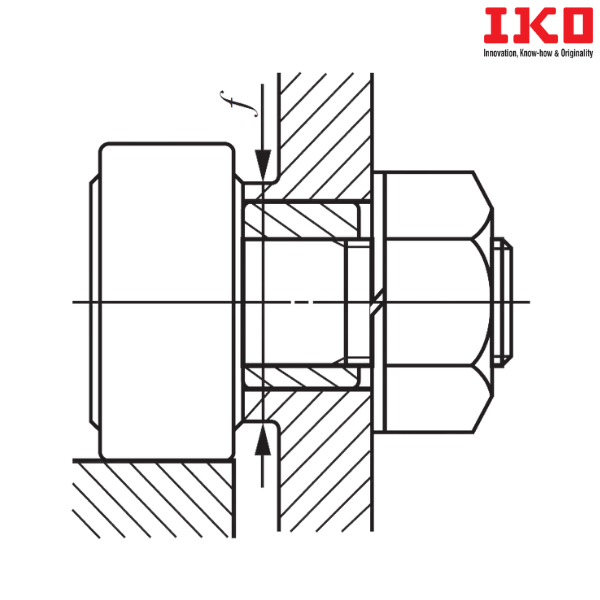

Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 13.8
Basic Dynamic Load Rating (C) N - 5430
Basic Static Load Rating (C0) N - 6890
Maximum Allowable Static Load (N) - 6890
Shield Type (with Crowned Outer Ring) - CFE 10 VBR
Sealed Type (with Crowned Outer Ring) - CFE 10 VBUUR
Sealed Type (with Cylindrical Outer Ring) - CFE 10 VBUU

Notes :

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------
CFE...B - Eccentric Type Cam Followers(Stud Head Hex Hole)
V - Full Complement Type

** Images are for representation purposes only
