CFC 8 VBUUR IKO

Brand - IKO
Category - Short Stud Type Cam Followers (with Cage/Full Complement)
Item Number - CFC 8 VBUUR IKO
Also Known As - CFC8VBUUR
Type - Sealed Type with Crowned Outer Ring Full Complement
Stud Diameter (mm) - 8
Weight (kg) - 0.028

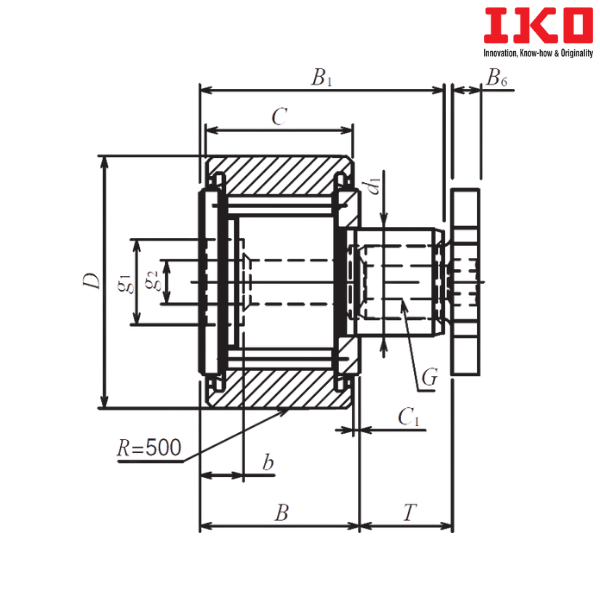

Outside Diameter of Outer Diameter (D) mm - 19
Width of Outer Ring (C) mm - 11
Boundary Dimension (d1) mm - 8
Maximum Boundary Dimension (B) mm - 12.2
Boundary Dimension (B1) mm - 18.3
Boundary Dimension (C1) mm - 0.6

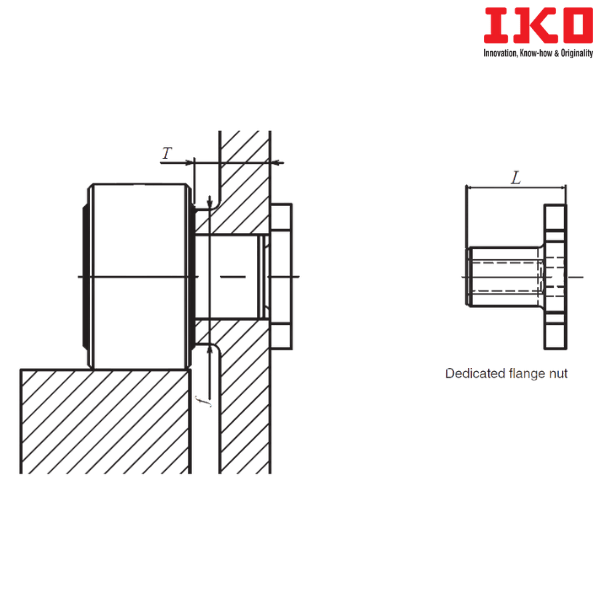

Mounting Range Possible with the Supplied Bolt (T) mm - 7〜11 (13)
Maximum Boundary Dimension (B6) mm - 2.2
G - M3×0.5
Boundary Dimension (b) mm - 3.3
Boundary Dimension (g1) mm - 6.4
Boundary Dimension (g2) mm - 3.3

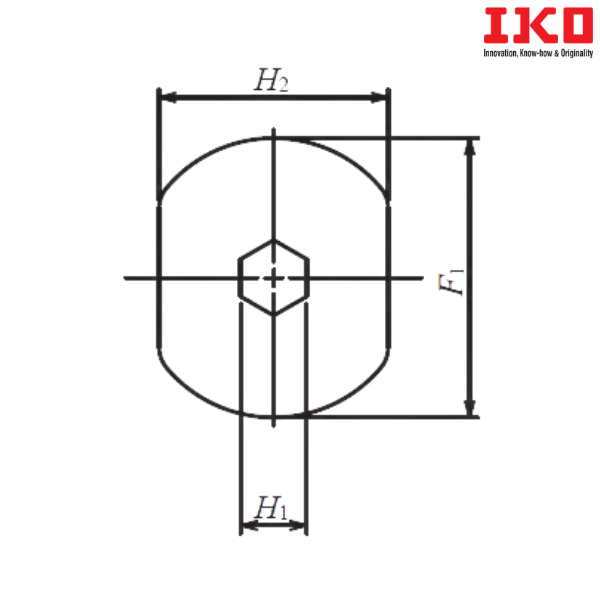

Boundary Dimension (H1) mm - 3
Boundary Dimension (H2) mm - 12
Boundary Dimension (F1) mm - 13.9
Maximum Boundary Dimension (L max) mm - 9.2
Minimum Mounting Dimension (f min) mm - 13
Maximum Tightening Torque (N-m) - 1.7
Basic Dynamic Load Rating (C) N - 8170
Basic Static Load Rating (C0) N - 11200
Maximum Allowable Static Load (N) - 3860

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFC....B - Short Stud Type Cam Followers
V - Full Complement Type
UU - Sealed Type
R - With Crowned Outer Ring

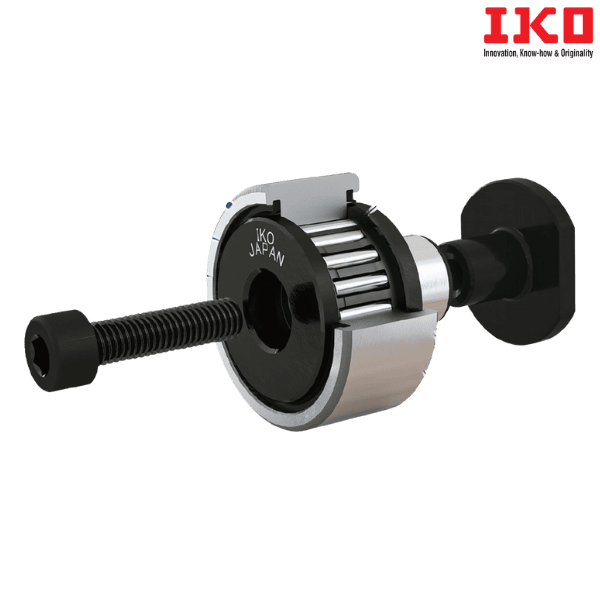

** Images are for representation purposes only
