CFC 12-1 BUUR IKO

Brand - IKO
Category - Short Stud Type Cam Followers (with Cage/Full Complement)
Item Number - CFC 12-1 BUUR IKO
Also Known As - CFC12-1BUUR
Type - Sealed Type with Crowned Outer Ring with Cage
Stud Diameter (mm) - 12
Weight (kg) - 0.099

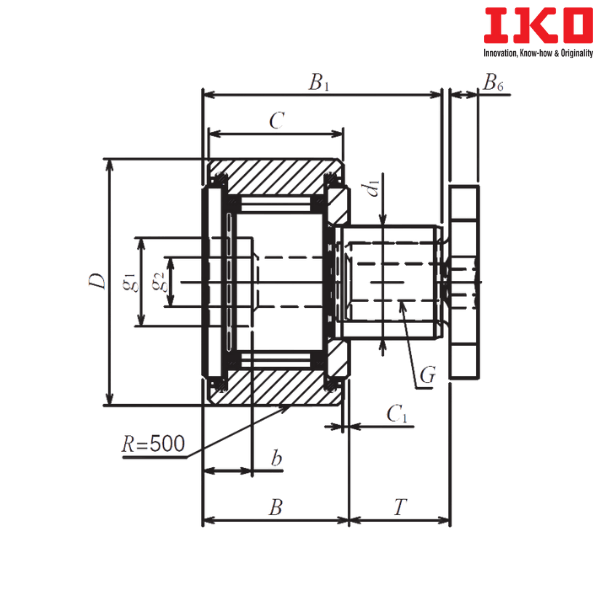

Outside Diameter of Outer Diameter (D) mm - 32
Width of Outer Ring (C) mm - 14
Boundary Dimension (d1) mm - 12
Maximum Boundary Dimension (B) mm - 15.2
Boundary Dimension (B1) mm - 24.3
Boundary Dimension (C1) mm - 0.6

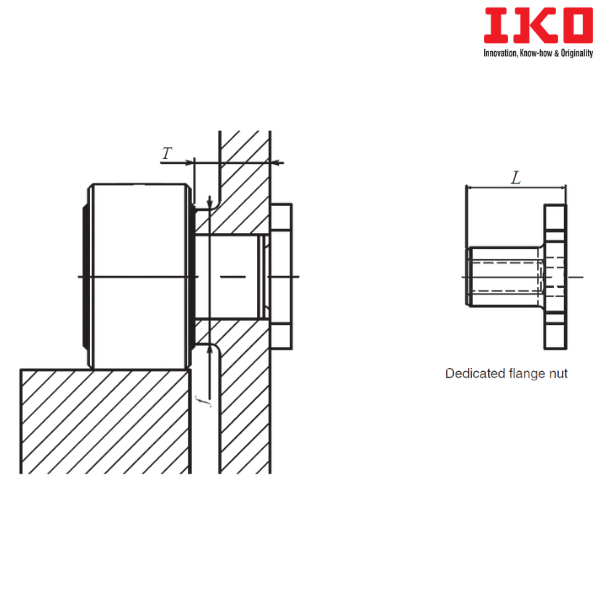

Mounting Range Possible with the Supplied Bolt (T) mm - 10〜15 (19)
Maximum Boundary Dimension (B6) mm - 3.2
G - M5×0.8
Boundary Dimension (b) mm - 5.4
Boundary Dimension (g1) mm - 9.4
Boundary Dimension (g2) mm - 5.4

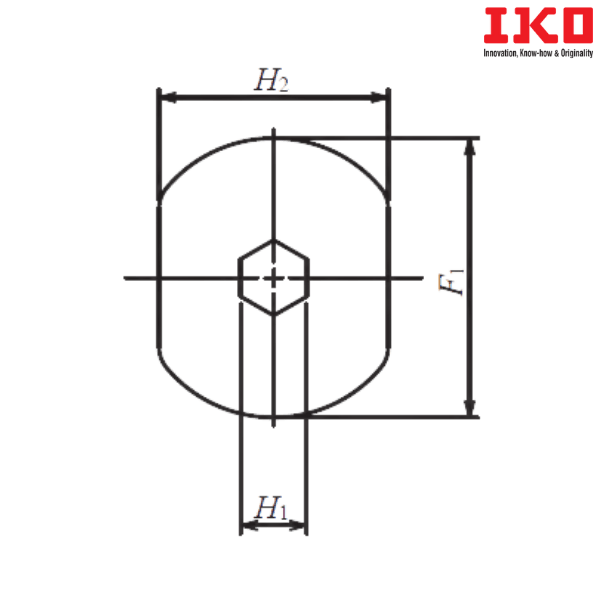

Boundary Dimension (H1) mm - 5
Boundary Dimension (H2) mm - 19
Boundary Dimension (F1) mm - 22.4
Maximum Boundary Dimension (L max) mm - 13.6
Minimum Mounting Dimension (f min) mm - 21
Maximum Tightening Torque (N-m) - 7.9
Basic Dynamic Load Rating (C) N - 7910
Basic Static Load Rating (C0) N - 9790
Maximum Allowable Static Load (N) - 9790

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFC....B - Short Stud Type Cam Followers
UU - Sealed Type
R - With Crowned Outer Ring

** Images are for representation purposes only
