CFC 10-1 VBUUR IKO

Brand - IKO
Category - Short Stud Type Cam Followers (with Cage/Full Complement)
Item Number - CFC 10-1 VBUUR IKO
Also Known As - CFC10-1VBUUR

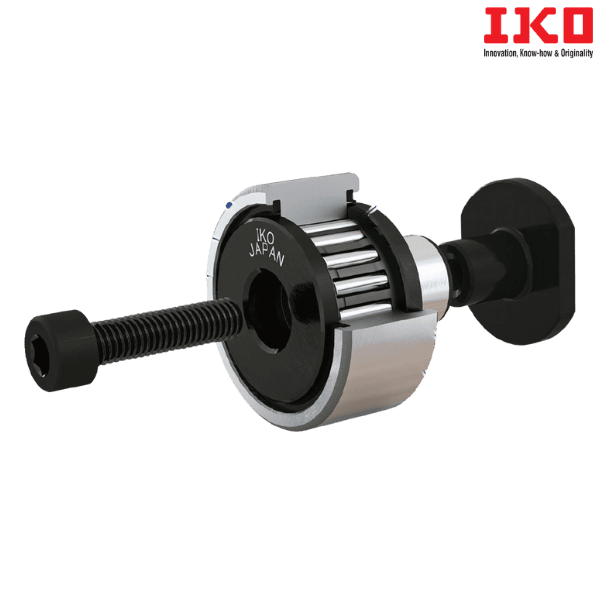

Type - Sealed Type with Crowned Outer Ring Full Complement
Stud Diameter (mm) - 10
Weight (kg) - 0.057

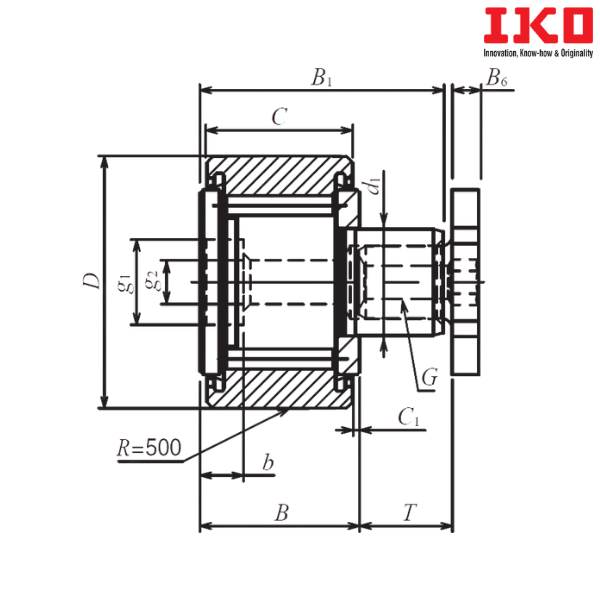

Outside Diameter of Outer Diameter (D) mm - 26
Width of Outer Ring (C) mm - 12
Boundary Dimension (d1) mm - 10
Maximum Boundary Dimension (B) mm - 13.2
Boundary Dimension (B1) mm - 21.3
Boundary Dimension (C1) mm - 0.6

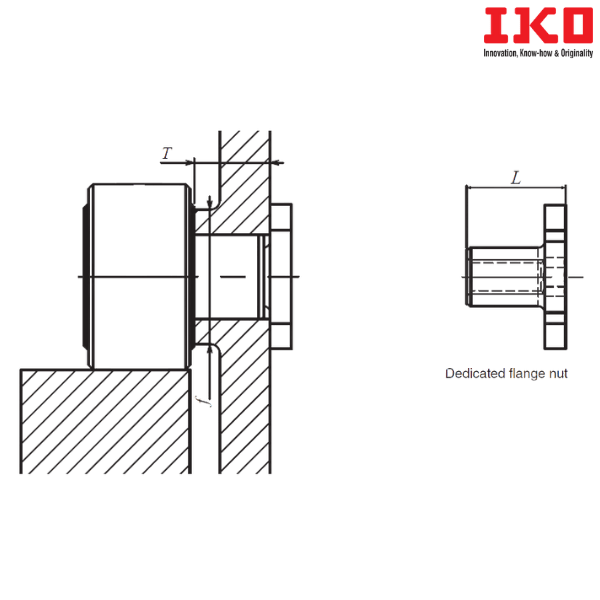

Mounting Range Possible with the Supplied Bolt (T) mm - 9〜14 (17)
Maximum Boundary Dimension (B6) mm - 2.7
G - M4×0.7
Boundary Dimension (b) mm - 4.4
Boundary Dimension (g1) mm - 7.9
Boundary Dimension (g2) mm - 4.4

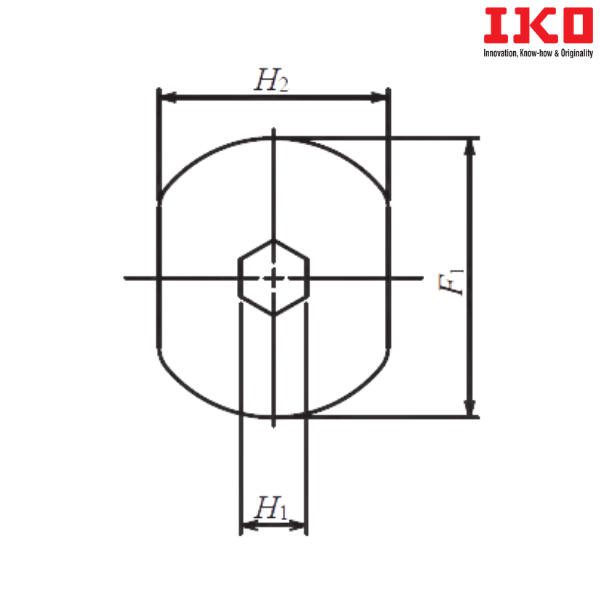

Boundary Dimension (H1) mm - 4
Boundary Dimension (H2) mm - 14
Boundary Dimension (F1) mm - 17.1
Maximum Boundary Dimension (L max) mm - 12
Minimum Mounting Dimension (f min) mm - 16
Maximum Tightening Torque (N-m) - 4
Basic Dynamic Load Rating (C) N - 9570
Basic Static Load Rating (C0) N - 14500
Maximum Allowable Static Load (N) - 7060

Notes :

Descriptions of Prefixes and Suffixes :
----------------------------------------------------
CFC....B - Short Stud Type Cam Followers
V - Full Complement Type
UU - Sealed Type
R - With Crowned Outer Ring
